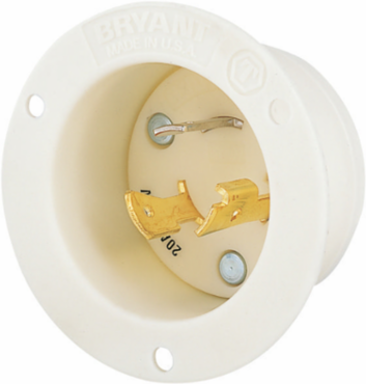

Bryant 70620MB Insulgrip Twist-Lock 20A 250V Flanged Inlet, 2-Pole 3-Wire, White, 2.88 Inch
- MPN: 70620MB
- UPC: 781786689268
- PPN: HBL-70620MB
- UNSPSC: 39121406
CAD
$68.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Industrial, Flanged Inlet, 20A 250V, 2-Pole 3-Wire Grounding, L6-20P, Screw Terminal, White
Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws
- Mounting screws included
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- NEMA Rating
- L6-20P
- Number of Wires
- 3-Wire
- Special Features
- Standard Product
- Color
- White
- Height
- 2.02 in
- Standards - RoHS Compliance Status
- CM
- Voltage Rating Description
- 250V
- Amperage Rating
- 20 A
- Connectivity
- Screw Terminals
- Display Size
- Standard Sized Product
- Insulation
- Insulated Body
- Number Of Poles
- 2-Pole
- Style
- Equipment Base
- Type
- Flanged Inlet
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A172
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.25 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
Number of Poles2-Pole
Size2.88 in x 2.88 in x 2.02 in
Country of OriginUnited States
Dimensions2.88 in x 2.88 in x 2.02 in
Length2.88 in
Voltage Rating250 V
Width2.88 in
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 3000V Minimum in
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Nema RatingL6-20P
Number Of Wires3-Wire
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Wire Size#18 AWG to #8 AWG
Description - InvoiceLKG FLG-INLT, 20A 250V, L6-20P, WH
Harmonization Code8536699999
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialComposite
BOX SIZE5.300x12.000x6.100 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786689268
Case Weight2.200 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
