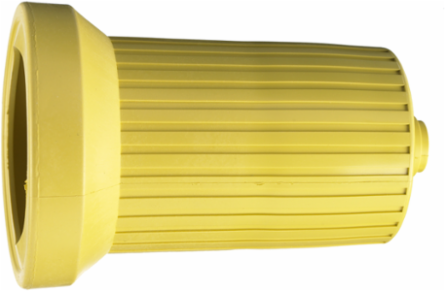

Hubbell Wiring Device-Kellems HBL60CM32V Weatherproof Twist-Lock Boot, 4.81 Inch x 3.03 Inch, Yellow
- MPN: HBL60CM32V
- UPC: 783585808390
- PPN: HBL-HBL60CM32V
- UNSPSC: 39121305
CAD
$28.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Accessories, Weatherproof Device Boot for 20A and 30A 3 Wire Valise Connectors, Yellow
Features
- Weather protective covering
- Durable thermoplastic elastomer material
- Ribbed design provides a secure grip
- Standard Product
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Height
- 3.03 in
- Standards - RoHS Compliance Status
- CM
- Color
- Yellow
- Size
- 4.81 in x 3.03 in x 3.03 in
- Type
- Weatherproof Boot
- Weight
- 0.45 lb.
- Display Size
- Standard Sized Product
- Style
- For 3-Wire Devices
- Description - Invoice
- W/PROOF DEVICE BOOT,L,20/30A TL,LONG,VAL
- Harmonization Code
- 3926904590
- MSDS Flag
- No
- Sub Class Code
- A08A110
- Construction
- Molded
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.750 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Lowest Level UOM
- Each
Dimensions4.81 in x 3.03 in x 3.03 in
PerformanceEnvironmental - Moisture Resistance - IP55;Environmental - Operating Temperatures - Maximum Continuous 75°C,Minimum -40°C (w/o impact)
Cable EntryEnd of Boot
Length4.81 in
Special FeaturesStandard Product
Width3.03 in
General Literature Asset 1 Display TextHubbell Marine Full Line Catalog
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number60CM32V
Material - Mounting HardwareMounts on Device
MaterialElastomer / Elastomeric
BOX SIZE5.435x16.805x12.375 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585808390
Each - Pack DescriptionEach
NAICS Code3262919100
