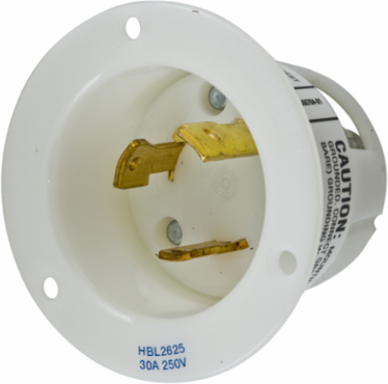

Hubbell Wiring Device-Kellems HBL2625 Twist-Lock Flanged Inlet, 30A 250V, 2-Pole 3-Wire Grounding, L6-30P

MPN: HBL2625
UPC: 783585038896
PPN: HBL-HBL2625
UNSPSC: 39121406

$64.74

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 30A 250V, 2-Pole 3-Wire Grounding, L6-30P, Screw Terminal, White.

Features

Backwired terminations for ease of installation
#10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
Mounting screws included
Standard Product

Specifications

Key Specifications

Engineering Drawing 1 Display Text	HBL2625 AutoCAD Drawing
General Literature Asset 2 Display Text	Entertainment Product Solution Guide
Country of Origin	United States
Dimensions	2.88 in x 2.88 in x 2.09 in
Industry Standard(s)	Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Performance	Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C. Minimum -40°C (w/o impact);Mechanical - Cord Grip Accomodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating	30 A
Color	White
Environmental Conditions	Indoor Dry Unless Protected By Additional Means
NEMA Rating	L6-30P
Number of Wires	3-Wire
Size	2.88 in x 2.88 in x 2.09 in
Standard	Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Voltage Rating	250 VAC
Voltage Rating Description	250 VAC
Width	2.88 in
Display Size	Standard Sized Product
Number Of Poles	2-Pole
Operating Temperature	Maximum continuous 75°C and minimum -40°C without Impact
Description - Invoice	LKG FLG-INLT, 30A 250V, L6-30P, WH
Harmonization Code	8536699902
MSDS Flag	No
Sub Class Code	A08A110
Current Rating	30 A
Base Unit of Measure	EA
Carton - Gross Weight per Pack	2.450 lb.
Carton - Pack Description	Carton
Carton - Total Units	10 EA
Case Weight	6.330 lb.
Lowest Level UOM	Each
Pallet Height	41.400 in
Pallet Weight	550.800 lb.
NAICS Code	335931A102

General Literature Asset 1 Display Text	Insulgrip® Straight Blade and Twist-Lock® Devices
General Literature Asset 3 Display Text	Emergency Preparedness for Healthcare
Current / Amperage Rating	30 A
Height	2.09 in
Length	2.88 in
Standards - RoHS Compliance Status	CM
Application	Extra Heavy Duty Industrial
Dielectric Strength	Withstands 2,000V minimum
Insulation	Insulated Body
Number of Poles	2-Pole
Phase	Single Phase
Special Features	Standard Product
Type	Flanged Inlet
Wire Size	#16 AWG to #8 AWG
Weight	0.20 lb.
Connectivity	Back Wired Screw Terminals
Nema Rating	L6-30P
Number Of Wires	3-Wire
Class Code	A08
Freight Class Code	06168002
Image Actual Or Representative	A
Replaced Catalog Number	HBL2625CN
Material - Mounting Hardware	Screw Mounting
Material	Nylon
BOX SIZE	3.600x12.600x6.300 (in)
Carton - Number of Sub Packs	10
Carton - SCC-14 Next Lower Level Sub Pack	783585038896
Case - Total Units	30 EA
Each - Pack Description	Each
Pallet - GTIN - Package	70783585038895
Pallet Length	48.000 in
Pallet Width	40.000 in
