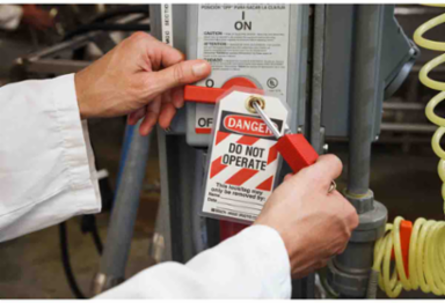

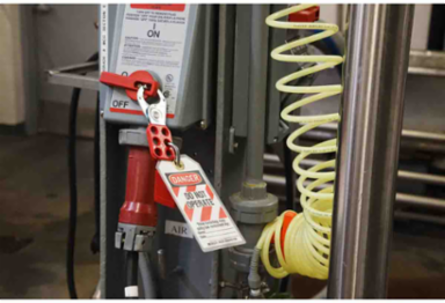

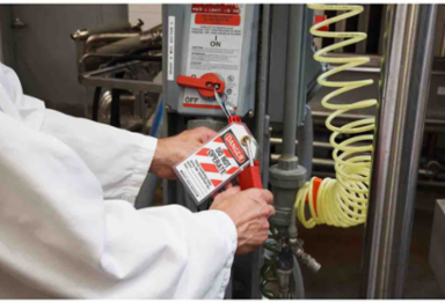

Brady 65525 Lockout Tags: DANGER: DO NOT OPERATE This lock/tag may only be removed by:, DANGER this energy source has been LOCKED OUT
- MPN: 65525
- UPC: 754473655259
- PPN: BRD-65525
- UNSPSC: 55121513
CAD
$89.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Heavy Duty Polyester (B-837) plastic tags are encapsulated in matte polyester laminate for superior durability during lockout and tagout situations.
Features
- Write-on polyester laminate protects the graphics, wipes clean and withstands water, grease and extreme temperatures
- Durable heavy duty polyester material with brass grommets exceeds OSHA's 50 lb pull force requirement for tagout devices
- Excellent chemical, oil and water resistance
- Service temperature of -40°F to 176°F (-40°C to 80°C)
Documentation & Downloads
Specifications
Key Specifications
| Brand Name | Brady® |
|---|---|
| Enables Industry Compliance | ANSI Z53.1-1967; ANSI Z535-2006; OSHA 1910.145; OSHA 1910.147 |
| Header | DANGER |
| Language | English |
| Perforated | Not Perforated |
| Reverse Header | DANGER |
| Shape | Rectangle |
| Write-On | Yes |
| Brady Material Number | B-837 |
| Laminated | Laminated |
| Resistance Properties | Abrasion-Resistant; Chemical-Resistant |
| Withstands Pull Force | 60 lb |
| Dimensions (Metric) | 146.1 mm H |
| Height (in/ft/yd) | 5.75 in |
| Hole Inside Diameter (in/ft/yd) | 0.375 in |
| Maximum Service Temperature °C | 80 °C |
| Minimum Service Temperature °C | -40 °C |
| Sign Size-General | 5.75 in x 3 in |
| Thickness (mm/cm/m) | 0.64 mm |
| Width (mm/cm/m) | 76.2 mm |
| Color | Black/Red on White |
|---|---|
| Finish | Matte |
| Includes | (25) Nylon Fasteners |
| Number of Printed Sides | 2 |
| Primary Noun, Basic Function | Tag |

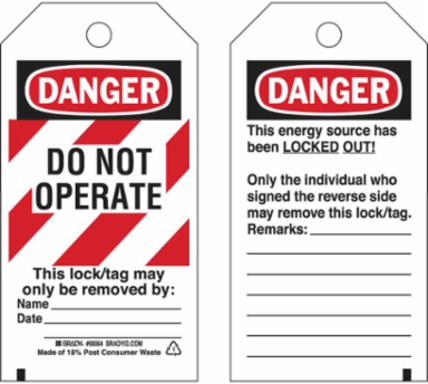

| Reverse Legend | This energy source has been LOCKED OUT! Only the individual who signed the reverse side may remove this lock/tag. Remarks |
| Text Legend | DO NOT OPERATE This lock/tag may only be removed by: Name____Date____ |
| Write-On Area | Yes |
| Grommet Material | Metal |
| Material | Polyester |
| SAP B-Number | B-837 |
| Dimensions | 5.75 in H x 3 in W |
| Dimensions 2 | 5.75 in H x 3 in W |
| Height (mm/cm/m) | 146.1 mm |
| Hole Inside Diameter (mm/cm/m) | 9.5 mm |
| Maximum Service Temperature °F | 176 °F |
| Minimum Service Temperature °F | -40 °F |
| Thickness (in/ft/yd) | 0.0252 in |
| Width (in/ft/yd) | 3 in |
Regulatory Information
| CA Prop 65 Labeled | Yes |
|---|---|
| Contains CA PROP 65 Substance | Yes Contains-Label required |
| Contains CA PROP 65 Warning Type | Cancer and Reproductive Harm |
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| CA Prop 65 Label Warning | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
|---|---|
| Contains CA PROP 65 Substance | Yes |
| Contains CA Prop 65 Cancer and Reproductive Harm Chemical | Lead |
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
