Brady 65526 Lockout Tags: DANGER: LOCKED OUT. DO NOT OPERATE. This lock/tag may only be removed by: Name: Date:
- MPN: 65526
- UPC: 754473655266
- PPN: BRD-65526
- UNSPSC: 55121513
CAD
$89.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy Duty Polyester (B-837) plastic tags are encapsulated in matte polyester laminate for superior durability during lockout and tagout situations.
Features
- Write-on polyester laminate protects the graphics, wipes clean and withstands water, grease and extreme temperatures
- Durable heavy duty polyester material with brass grommets exceeds OSHA's 50 lb pull force requirement for tagout devices
- Excellent chemical, oil and water resistance
- Service temperature of -40°F to 176°F (-40°C to 80°C)
Documentation & Downloads
Specifications
Key Specifications
- Attachment Type
- Grommet
- Color
- Black/Red on White
- Finish
- Matte
- Includes
- Grommet
- Number of Printed Sides
- 2
- Primary Noun, Basic Function
- Tag
- Reverse Legend

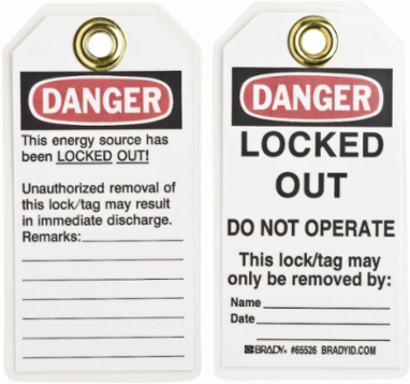

- THIS ENERGY SOURCE HAS BEEN LOCKED OUT! UNAUTHORIZED REMOVAL THIS LOCK/TAG MAY RESULT IN IMMEDIATE DISCHARGE. REMARKS_____.
- Text Legend
- LOCKED OUT. DO NOT OPERATE. THIS LOCK/TAG MAY ONLY BE REMOVED BY: NAME_____. DATE_____.
- Write-On Area
- Yes
- Grommet Material
- Metal
- Material
- Polyester
- SAP B-Number
- B-837
- Dimensions
- 5.75 in H x 3 in W
- Dimensions 2
- 5.75 in H x 3 in W
- Height (mm/cm/m)
- 146.1 mm
- Hole Inside Diameter (mm/cm/m)
- 9.5 mm
- Maximum Service Temperature °F
- 176 °F
- Minimum Service Temperature °F
- -40 °F
- Thickness (in/ft/yd)
- 0.0252 in
- Width (in/ft/yd)
- 3 in
Brand NameBrady®
Enables Industry ComplianceANSI Z53.1-1967; ANSI Z535-2006; OSHA 1910.145; OSHA 1910.147
HeaderDANGER
LanguageEnglish
PerforatedNot Perforated
Reverse HeaderDANGER
ShapeRectangle
Write-OnYes
Brady Material NumberB-837
LaminatedPolyester Overlaminate
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant
Withstands Pull Force60 lb
Dimensions (Metric)146.1 mm H
Height (in/ft/yd)5.75 in
Hole Inside Diameter (in/ft/yd)0.375 in
Maximum Service Temperature °C80 °C
Minimum Service Temperature °C-40 °C
Sign Size-General5.75 in x 3 in
Thickness (mm/cm/m)0.64 mm
Width (mm/cm/m)76.2 mm
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer and Reproductive Harm
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer and Reproductive Harm ChemicalLead
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
