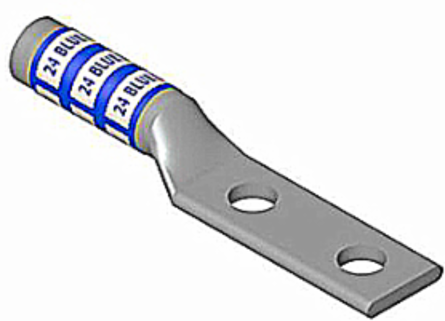

Color-Keyed 54852BE0310PH Long Barrel
- MPN: 54852BE0310PH
- UPC: 786210394381
- PPN: T-B-54852BE0310PH
CAD
$29.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Copper Two-Hole Lug, Long Barrel, Peep Hole, Max 35kV, Wire Size #6 AWG, #10 Bolt Size, 5/8 Inch Hole Spacing, Tin Plated, Die Code 24, Die Color Code Blue
Specifications
European Specifications (ETIM)
| ETIM | EC001051 Tube cable lug for copper conductors |
|---|---|
| Slender flange model | N |
| With sight-hole | Y |
| Surface protection | Tinned |
| Connecting angle | Straight |
|---|---|
| Insulated | N |
| Material | Copper |
| Number of fixing holes | 2 |
North American Specifications (UNSPSC)
| UNSPSC | 39121405 Cable or wire lug |
|---|---|
| Brand Name | Color-Keyed |
| Cable Size | #6 AWG |
| Number Of Holes | 2 |
| Insulation | None |
| Color | Blue |
| IGCC | 4532 Cable or wire lug |
|---|---|
| Type | Long Barrel |
| Stud Size | #10 |
| Voltage Rating | Max 35kV |
| Material | Copper |
Packaging
| Inner Quantity | 50 |
|---|---|
| Outer Quantity | 500 |
| Inner Dimensions (inches) | 3.5x3x3 |
|---|---|
| Weight Uom | 2.5 lbs. per 100 |
