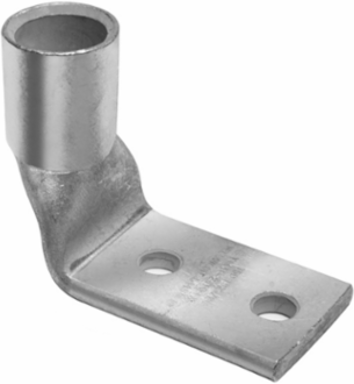

Burndy YAZ252TC3890 Long Length Barrel Terminal, 1/0 AWG, 2 Hole, 35 kV Rating, Copper
- MPN: YAZ252TC3890
- UPC: 781810229569
- PPN: BUR-25019330
CAD
$54.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Compression Terminal Code Conductor, Bevelled Entry, 2 Hole W/Inspection Window, 1/0 AWG Code, 100 Navy, 600 V-35 kV, 3/8" Stud, 1.00" Spacing, Long barrell, Pink, 12 or 348 Index.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.38
- Dimension - E Spacing between Holes fraction
- 1
- Dimension - Hole Size inch
- 0.4
- Dimension - L Length Overall mm
- 56
- Dimension - N inch
- 0.41
- Dimension - Pad Width inch
- 0.75
- Dimension - Z inch
- 0.43 in
Dimension - Bolt Size fraction3/8
Dimension - Height inch1.96
Dimension - Hole Size mm10
Dimension - Length Overall inch2.2
Dimension - Outside Diameter inch0.51
Dimension - Strip Length inch1-7/16
Physical Attribute - Tongue Angle90 Degree
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Str Navy Size
- 100 Navy
- Conductor - Material
- Copper
Conductor - Copper Str Size1/0 AWG
General
- Color Code
- Pink
- Die Index
- 12;348
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 2
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810229569
Connector TypeTerminal
Feature - Barrel StyleSkived
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
TypeLong Barrel, Skive, Tin Plated
UPC 12 Digit7818102295699
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 25
