Burndy YAZ2CTC3890 Long Length Barrel YAZ2CTC3890
- MPN: YAZ2CTC3890
- UPC: 781810239698
- PPN: BUR-25020357
CAD
$28.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

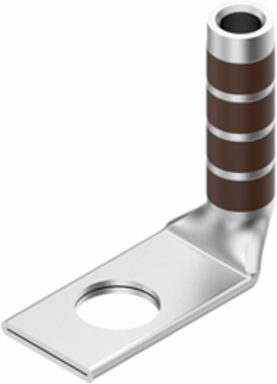

1 Hole HYLUG™ Cu Compr Terminal, Long Brrl, W/ Insp Window, #2 AWG, 60 Navy, 3/8" stud, Brown, 10 Index
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.25 in
- Dimension - Height inch
- 1.74 in
- Dimension - Hole Size mm
- 10 mm
- Dimension - Length Overall inch
- 1.14 in
- Dimension - Outside Diameter inch
- 0.42 in
- Dimension - Strip Length inch
- 1-5/16
- Physical Attribute - Tongue Angle
- 90 Degree
Dimension - Bolt Hole Size inch0.39 in
Dimension - Hole Size inch0.40 in
Dimension - L Length Overall mm29 mm
Dimension - N inch0.41 in
Dimension - Pad Width inch0.60 in
Dimension - Z inch0.42 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Str Navy Size
- 60 (37) Navy
- Conductor - Material
- Copper
Conductor - Copper Str Size2 AWG
General
- Color Code
- Brown
- Die Index
- 10
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 1
- Plating Type
- Tin - Electro Plated
- Type
- Long Barrel, Skive, Tin Plated
- UPC 12 Digit
- 7818102396988
Connector TypeTerminal
Feature - Barrel StyleSkived
MaterialCopper
PlatedYES
Trade NameHYLUG™
UPC781810239698
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 25
