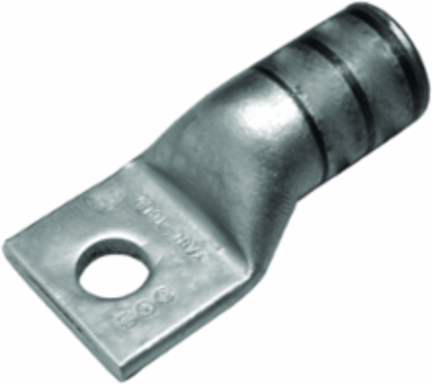

Burndy YAG34LTC38FX Copper Compression Terminal, 2.91 Inch Length, 600V Rating, Tin Plated

MPN: YAG34LTC38FX
UPC: 781810051467
PPN: BUR-000227

$87.45

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Copper Compression Terminal

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length inch	1.27 in
Dimension - Bolt Size fraction	3/8
Dimension - Hole Size inch	0.40 in
Dimension - L Length Overall mm	74 mm
Dimension - N inch	0.41 in
Dimension - Pad Width inch	1.55 in
Dimension - Stud Size inch	3/8
Physical Attribute - Tongue Angle	Straight

Dimension - Bolt Hole Size inch	0.39 in
Dimension - D inch	0.83 in
Dimension - Hole Size mm	10 mm
Dimension - Length Overall inch	2.91 in
Dimension - Outside Diameter inch	1.06 in
Dimension - Strip Length inch	1-5/16
Dimension - Z inch	0.42 in

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Recognized	No
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - cULus	No
UL Listed	Yes

Conductor Related

Conductor - Copper DLO Size	373.7 (925/#24) DLO
Conductor - Copper Flex H Size	350 kcmil
Conductor - Copper Flex K Size	350 kcmil
Conductor - Copper Flex M Size Range	350 kcmil

Conductor - Copper Flex G Size	350 kcmil
Conductor - Copper Flex I Size	350 kcmil
Conductor - Copper Flex M Size	350 kcmil
Conductor - Material	Copper

General

Color Code	Blue
Die Index	19
Feature - Barrel Type	Standard
Physical Attribute - Number of Holes	1
Plating Type	Tin
Trade Name	HYLUG™
UPC	781810051467

Connector Type	Terminal
Feature - Barrel Style	Chamfered
Material	Copper
Plated	Y
Temperature Rating	194
Type	Standard Barrel, Tin Plated
UPC 12 Digit	7818100514677
