Long Length Barrel Terminal, 2-1/4 Inch B Length, 500 kcmil, Copper
Burndy

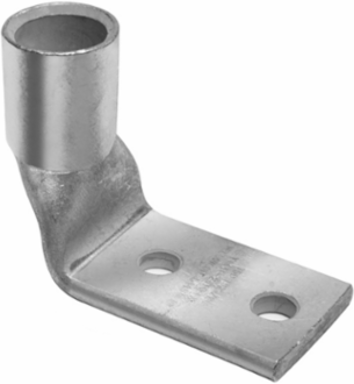

Burndy YAZ342TC3890 Long Length Barrel Terminal, 2-1/4 Inch B Length, 500 kcmil, Copper

  • MPN: YAZ342TC3890
  • UPC: 781810216132
  • PPN: BUR-25017700

CAD

$113.74

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

COPPER COMPRESSION TERMINAL.

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length fraction
2-1/4 in
Dimension - Bolt Hole Size inch
0.39 in
Dimension - Height inch
3.41 in
Dimension - Hole Size mm
10 mm
Dimension - Length Overall inch
2.54 in
Dimension - Outside Diameter inch
1.06 in
Dimension - Strip Length inch
2-5/16
Physical Attribute - Tongue Angle
90 Degree
Dimension - B Length inch2.25 in
Dimension - Bolt Size fraction3/8
Dimension - Hole Size inch0.40 in
Dimension - L Length Overall mm65 mm
Dimension - N inch0.41 in
Dimension - Pad Width inch1.55 in
Dimension - Z inch0.43 in

Certifications and Compliance

Certification - CSA Approved
Yes
Certification - UL Recognized
No
Standards - RoHS Compliance Status
CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes

Conductor Related

Conductor - Copper Str Size
500 kcmil
Conductor - MaterialCopper

General

Color Code
Brown
Die Index
20;299
Feature - Barrel Type
Long
Physical Attribute - Number of Holes
2
Plated
Y
Trade Name
HYLUG™
UPC
781810216132
Connector TypeTerminal
Feature - Barrel StyleSkived
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
TypeLong Barrel, Skive, Tin Plated
UPC 12 Digit7818102161322

Electrical Ratings

Rating - KVA
35 kV
Voltage - Maximum
35000
Rating - Minimum Voltage600

Logistics

Minimum Pack Quantity
6
