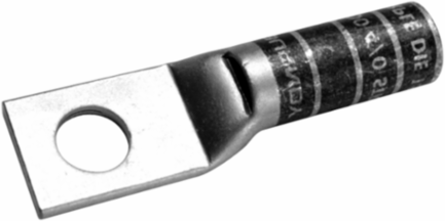

Burndy YAZ6CTC12 Long Length Barrel Terminal, 6 AWG, 1 Hole, 35 kV, Blue, 2.46 Inch Overall Length
- MPN: YAZ6CTC12
- UPC: 781810239414
- PPN: BUR-25020329
CAD
$17.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Tubing Hylug (One Hole Code), 1 Hole with Inspection Window, #6 AWG Code,30 Navy, 600V-35kV, 1/2" stud, Long, Compression, 0.52 in BCD, Blue
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-1/8 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Hole Size inch
- 0.52 in
- Dimension - L Length Overall mm
- 62 mm
- Dimension - N inch
- 0.53 in
- Dimension - Pad Width inch
- 0.75 in
- Dimension - Stud Size inch
- 1/2
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch1.12 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size mm13 mm
Dimension - Length Overall inch2.46 in
Dimension - Outside Diameter inch0.29 in
Dimension - Strip Length inch1-3/16
Dimension - Z inch0.55 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Str Navy Size
- 30 (19) Navy
- Conductor - Material
- Copper
Conductor - Copper Str Size6 AWG
General
- Color Code
- Blue
- Die Index
- 7;374
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 1
- Plating Type
- Tin - Electro Plated
- Type
- Long Barrel, Skive, Tin Plated
- UPC 12 Digit
- 7818102394144
Connector TypeTerminal
Feature - Barrel StyleSkived
MaterialCopper
PlatedY
Trade NameHYLUG™
UPC781810239414
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 50
