Fluke FLUKE 709H Fluke 709H Precision mA Loop Calibrator with HART Communications / Diagnostics Fluke 709H

MPN: FLUKE 709H
UPC: 095969643757
PPN: FLU-FLUKE-709H

$2706.33

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

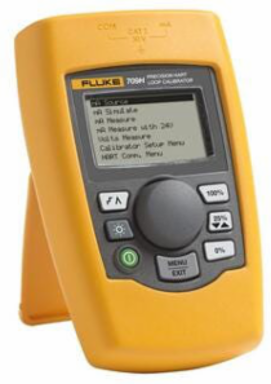

Fluke 709H Precision mA Loop Calibrator with HART Communications / Diagnostics Fluke 709H

Features

mA precision loop calibrator that communicates with and tests HART smart instruments
Features best-in-class accuracy at 0.01% reading
Provides intuitive user interface with Quick-Set knob for fast setup
Includes built in selectable 250 Ω resistor for HART communication
Features 24 V DC loop power with mA measure mode (-25% to 125%)

Documentation & Downloads

Specifications

Detailed Specifications

Functions	mA source, mA simulate, mA read, mA read/loop power, and volts read.
Resolution	1 µA on mA ranges and 1 mV on voltage range
Operating temperature range	-10°C to 55°C (14°F to 131°F)
Stability	20 ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C
Power	6 AAA alkaline
Loop compliance voltage	24 V DC @ 20mA
Overload current protection	28 mA DC
Dimensions (L x W x D)	15 x 9 x 3 cm (6 x 3.6 x 1.3 in)
Included accessories	NIST traceable calibration certificate with data, batteries, test leads, and manual

Ranges	mA (0 to 24 mA) and Volts (0 to 30 V DC)
Accuracy	0.01% ± 2 counts, all ranges (@23° ± 5°C)
Humidity range	10 to 95% non-condensing
Display	128 x 64 pixels, LCD Graphic w/backlight, .34 high digits
Battery life	40 hours typical
Over-voltage protection	240 V AC
EMC	EN61326 Annex A (Portable Instruments)
Weight	0.3 kg (9.5 oz)
Warranty	Three year
