Fluke Fluke 718 1G Fluke 718 1G Pressure Calibrator
- MPN: Fluke 718 1G
- UPC: 095969327640
- PPN: FLU-FLUKE-718 1G
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

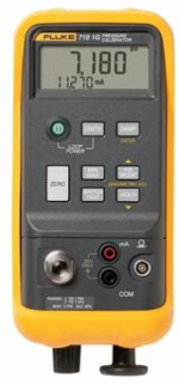

Fluke 718 1G Pressure Calibrator
Features
- Pressure Source and mA Measurement to calibrate pressure devices
- Built-in pump for sourcing pressure to 300 PSI
- Easy-to-clean, field-serviceable, integrated pressure pump
- Built-in switch test for calibrating pressure switches
- Extend pressure capabilities by using Fluke 750P pressure modules
Documentation & Downloads
Specifications
General Specifications
| Maximum voltage | 30 volts (non-operating) |
|---|---|
| Operating temperature | -10°C to 55°C |
| Operating altitude | 3,000 M max |
| Vibration | Random, 2 g, 5 Hz – 500 Hz |
| EMC | EN50082-1: 1992 and EN55022: 1994 Class B |
| Weight | 992 g (35 oz) |
| Battery life | 4 to 20 hours typical, depending on functions used |
| Display | LCD, 5 digit pressure and current simultaneous |
| Temperature | -40°C to 60°C |
|---|---|
| Relative humidity | 95% (10°C to 30°C); 75% (30°C to 40°C); 45% (40°C to 50°C); 35% (50°C to 55°C) |
| Shock | 1 M drop test |
| Safety | CSA C22.2 No. 1010.1: 1992 |
| Size | 216 x 94 x 66 mm (8.50 x 3.72 x 2.60 in) |
| Power, battery life | 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline; two batteries in 718 |
| Warranty | Three years (one year on pressure pump in Fluke 718) |
