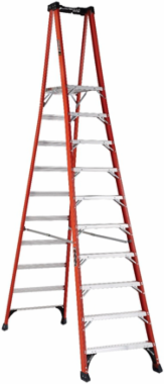

Louisville Ladder FXP1810HD 10 Foot Fiberglass Pinnacle Pro Platform Ladder, Type IAA, 375 lb Capacity

MPN: FXP1810HD
UPC: 728865125774
PPN: LOU-FXP1810HD

$1025.27

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Louisville 10 foot Pinnacle Platform step ladder has a 375lb load capacity, rated ANSI Type IAA. It features a 36" extended handrail and a 50% larger platform area for added comfort and safety. This ladder is equipped with the innovative ProTop with multiple tool slots and magnet, SHOX impact absorption system, Raptor boots with non-marring bonded tread mechanically fastened to the upper boot to create a secure slip-resistant footing, wide back braces, and double-rivet step construction. The Louisville FXP1810HD Pinnacle Platform ladder meets or exceeds the safety standards set by ANSI and OSHA.

Features

36" Tall Extended Handrail From Top To Platform
50% Larger Platform Area For Added Comfort And Safety

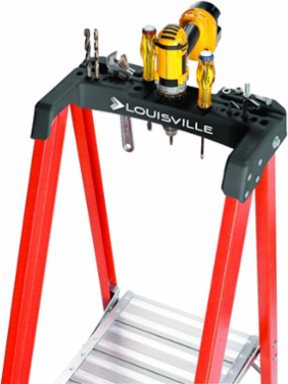

ProTop With Multiple Tool Slots And Magnet
Raptor Slip-resistant Boot

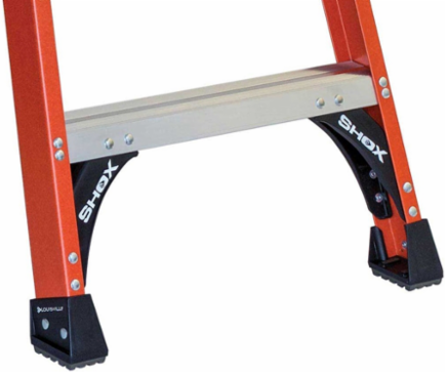

Shox Impact Absorption System
Double-Rivet Step Construction
Wide Back Braces
ANSI Certified
OSHA Certified

Documentation & Downloads

Specifications

Key Specifications

Style	Pinnacle Pro Platform
Load Capacity (lbs)	375
Number of Steps	10
Step Depth	3
Weight	65
Maximum Standing Height (in)	91
Open Volume (cu. ft.)	24.67
Open Height (in)	149
Open Width (in)	33.75
Closed Height	159.4
Closed Width (in)	33.8
Platform Depth (in)	21.25
Platform Rear Width (in)	14.5

Duty Rating	Type IAA
Size	10
Rung Type	Standard Step
Material	Fiberglass
Maximum Standing Height (in)	9’ 6”
Maximum Reach (in)	170
Open Volume (cu. m.)	7.25
Open Depth (in)	88
Closed Volume (cu. ft.)	31.90612793
Closed Depth	10
Top Width Closed (in)	18.4375
Platform Front Width (in)	14.5
Platform Height (in)	1.25
