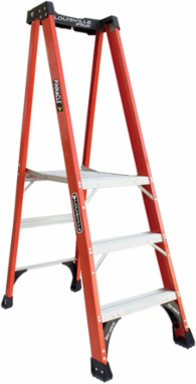

Louisville Ladder FXP1803HD 3-Foot Fiberglass Pinnacle Pro Platform Ladder, Type IAA, 375 lb Capacity
- MPN: FXP1803HD
- UPC: 728865125729
- PPN: LOU-FXP1803HD
CAD
$472.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Louisville 3 foot Pinnacle Platform step ladder has a 375lb load capacity, rated ANSI Type IAA. It features a 36" extended handrail and a 50% larger platform area for added comfort and safety. This ladder is equipped with the innovative ProTop with multiple tool slots and magnet, SHOX impact absorption system, Raptor boots with non-marring bonded tread mechanically fastened to the upper boot to create a secure slip-resistant footing, wide back braces, and double-rivet step construction. The Louisville FXP1803HD Pinnacle Platform ladder meets or exceeds the safety standards set by ANSI and OSHA.
Features
- 36" Tall Extended Handrail From Top To Platform
- 50% Larger Platform Area For Added Comfort And Safety

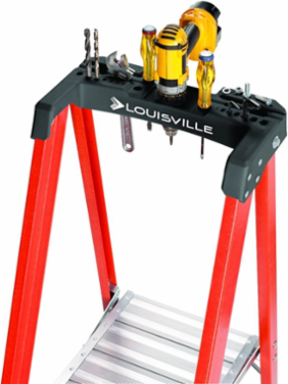

- ProTop With Multiple Tool Slots And Magnet

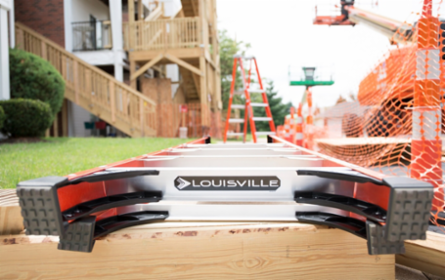

- Raptor Slip-resistant Boot

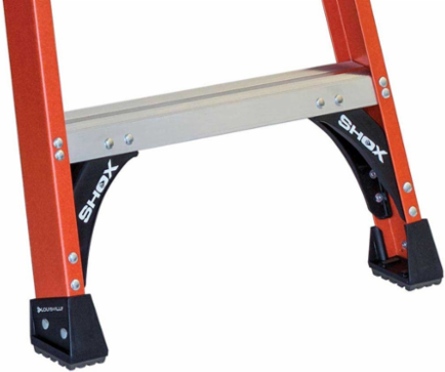

- Shox Impact Absorption System
- Double-Rivet Step Construction
- Wide Back Braces
- ANSI Certified
- OSHA Certified
Documentation & Downloads
Specifications
Key Specifications
- Style
- Pinnacle Pro Platform
- Load Capacity (lbs)
- 375
- Number of Steps
- 3
- Step Depth
- 3
- Weight
- 25
- Open Volume (cu. ft.)
- 9.28
- Open Height (in)
- 69.125
- Open Width (in)
- 23.125
- Closed Height
- 75.3
- Closed Width (in)
- 23.1
- Platform Depth (in)
- 21.25
- Platform Rear Width (in)
- 14.5
Duty RatingType IAA
Size3
Rung TypeStandard Step
MaterialFiberglass
Maximum Standing Height (in)2’ 10”
Open Volume (cu. m.)1.10
Open Depth (in)42
Closed Volume (cu. ft.)10.32210739
Closed Depth10
Top Width Closed (in)18.4375
Platform Front Width (in)14.5
Platform Height (in)1.25
