Louisville Ladder AE1216HD Louisville Ladder 16-Foot Aluminum Extension Ladder, Type IAA, 375-pound Load Capacity, AE1216HD
Louisville Ladder AE1216HD Louisville Ladder 16-Foot Aluminum Extension Ladder, Type IAA, 375-pound Load Capacity, AE1216HD
- MPN: AE1216HD
- UPC: 728865083517
- PPN: LOU-AE1216HD
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$723.52/ EA
Description
This Louisville 16 foot aluminum industrial extension ladder has a 375 pound load capacity, rated ANSI Type IAA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder includes the patented QuickLatch RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. This ladder also features outside slide guides, D-shaped rungs fully serrated for a slip resistant surface, full I-beam for a more stable connection and to prevent twisting, and swivel safety shoes to be used with the tread down or in spike position. The Louisville AE1216HD aluminum extension ladder meets or exceeds the safety standards set by ANSI and OSHA.
Features

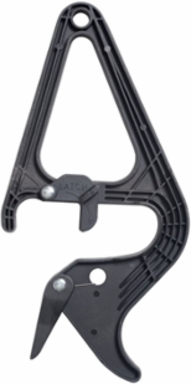

- Includes our custom engineered MAXLOCK that is made from a patented and advanced molecular polymer. Our MAXLOCK is the strongest toughest lightest rung lock ever made

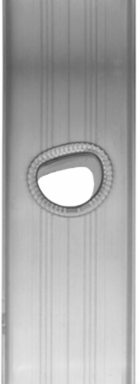

- D-Shaped Rungs

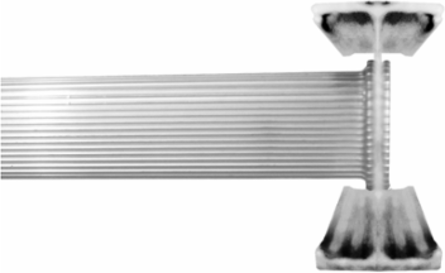

- Full I-Beam
- Aluminum Cast Rail End Caps

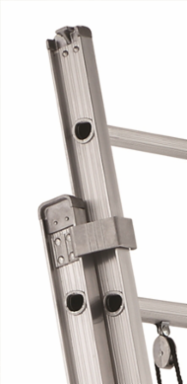

- Outside Slide Guides

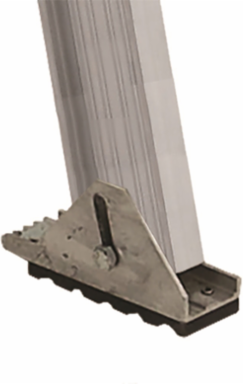

- Swivel Safety Shoes

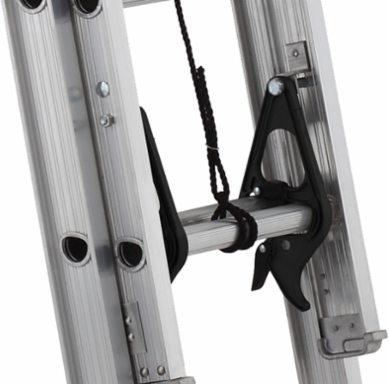

- Patented Quicklatch Runglock System
- ANSI Certified
- OSHA Certified
Specifications
Specifications
- Style
- Standard
- Load Capacity (lbs)
- 375
- Number of Steps
- 16
- Step Depth
- 1.5
- Weight
- 38
- Closed Volume (cu. ft.)
- 7.541
- Closed Depth
- 6.5
- Section Length (ft)
- 8
- Max. Extended Length (ft)
- 13
- Inside Width Base (in)
- 16.438
- Outside Width Base (in)
- 19.063
Duty RatingType IAA
Size16
Rung TypeD-rung
MaterialAluminum
Maximum Standing Height (in)13’
Closed Height101.5
Closed Width (in)19.75
Total Length (ft)16
Rail Depth (in)3
Inside Width Fly (in)14.313
Outside Width Fly (in)16.938
