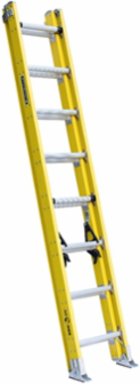

Louisville Ladder FE4216HD 16 Foot Fiberglass Extension Ladder, Type IAA, 375 lb Load Capacity
Louisville Ladder FE4216HD 16 Foot Fiberglass Extension Ladder, Type IAA, 375 lb Load Capacity
- MPN: FE4216HD
- PPN: LOU-FE4216HD
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$695.30/ EA
Description
This Louisville 16 foot heavy duty fiberglass extension ladder has a 375lb load capacity, rated ANSI Type IAA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder includes the patented QuickLatch RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. The ladder features outside slide guides, aluminum rung connector plates, D-shaped rungs fully serrated for a slip resistant surface, non-marring rail end caps, and full heavy duty metal boot with steel swivel safety shoes to be used with the tread down or in spike position. The Louisville FE4216HD fiberglass extension ladder meets or exceeds the safety standards set by ANSI and OSHA.
Features
- Includes our custom engineered MAXLOCK that is made from a patented and advanced molecular polymer. Our MAXLOCK is the strongest toughest lightest rung lock ever made
- Aluminum Swivel Safety Shoes With Full Metal Boot
- Patented Quicklatch Runglock System
- Mar-Resistant Rail End Caps
- Aluminum Rung Connector Plates
- Outside Slide Guides
- D-Shaped Rungs
- ANSI Certified
- OSHA Certified
Specifications
Specifications
- Style
- Standard
- Load Capacity (lbs)
- 375
- Number of Steps
- 16
- Step Depth
- 1.5
- Weight
- 42
- Closed Volume (cu. ft.)
- 7.644
- Closed Depth
- 7
- Section Length (ft)
- 8
- Max. Extended Length (ft)
- 13
- Inside Width Base (in)
- 15.000
- Outside Width Base (in)
- 17.375
Duty RatingType IAA
Size16
Rung TypeD-rung
MaterialFiberglass
Maximum Standing Height (in)17’
Closed Height102
Closed Width (in)18.5
Total Length (ft)16
Rail Depth (in)3.25
Inside Width Fly (in)13.688
Outside Width Fly (in)16.063
