20 Foot Fiberglass Extension Ladder, Type II, 225 lb Load Capacity
20 Foot Fiberglass Extension Ladder, Type II, 225 lb Load Capacity
20 Foot Fiberglass Extension Ladder, Type II, 225 lb Load Capacity
20 Foot Fiberglass Extension Ladder, Type II, 225 lb Load Capacity
20 Foot Fiberglass Extension Ladder, Type II, 225 lb Load Capacity
20 Foot Fiberglass Extension Ladder, Type II, 225 lb Load Capacity
20 Foot Fiberglass Extension Ladder, Type II, 225 lb Load Capacity
Louisville Ladder

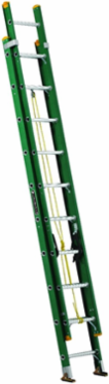

Louisville Ladder FE0620 20 Foot Fiberglass Extension Ladder, Type II, 225 lb Load Capacity

  • MPN: FE0620
  • UPC: 095641618202
  • PPN: LOU-FE0620

CAD

$487.70

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This Louisville 20 foot fiberglass extension ladder has a 225lb load capacity, rated ANSI Type II. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder includes the patented QuickLatch RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. The ladder features outside slide guides, D-shaped rungs fully serrated for a slip resistant surface, non-marring rail end caps, rope and pulley, and steel swivel safety shoes with metal shield to be used with the tread down or in spike position. The Louisville FE0620 fiberglass extension ladder meets or exceeds the safety standards set by ANSI and OSHA.

Features

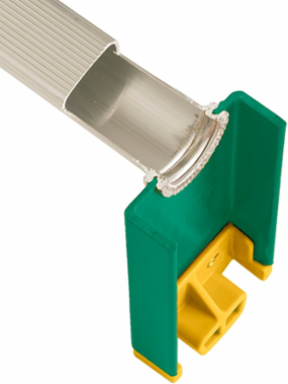

  • Includes our custom engineered MAXLOCK that is made from a patented and advanced molecular polymer. Our MAXLOCK is the strongest toughest lightest rung lock ever made
  • D-Shaped Rungs

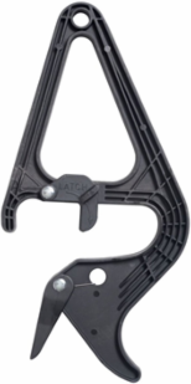

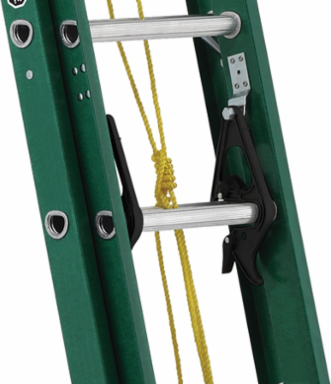

  • Patented Quicklatch Runglock System

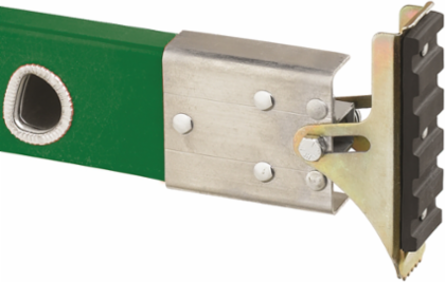

  • Steel Swivel Safety Shoes With Metal Shield

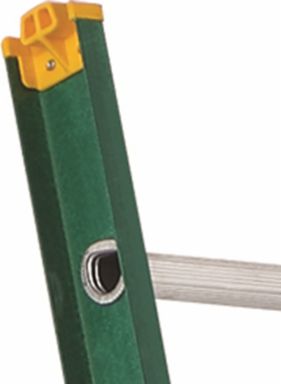

  • Mar-Resistant Rail End Caps

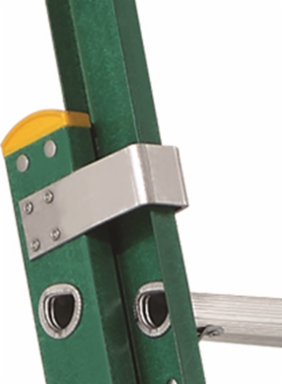

  • Outside Slide Guides
  • Direct Rung-Rail Connection
  • ANSI Certified
  • OSHA Certified

Documentation & Downloads

Specifications

Key Specifications

Style
Standard
Load Capacity (lbs)
225
Number of Steps
20
Step Depth
1.5
Weight
36
Closed Volume (cu. ft.)
8.061
Closed Depth
6.25
Section Length (ft)
10
Max. Extended Length (ft)
17
Inside Width Base (in)
14.688
Outside Width Base (in)
17.063
Duty RatingType II
Size20
Rung TypeD-rung
MaterialFiberglass
Maximum Standing Height (in)17’
Closed Height125.125
Closed Width (in)17.812
Total Length (ft)20
Rail Depth (in)3.25
Inside Width Fly (in)13.688
Outside Width Fly (in)16.063
