Louisville Ladder AE4224PG 24 Foot Aluminum Extension Ladder, Type II, 225 lb Load Capacity

  • MPN: AE4224PG
  • UPC: 728865110596
  • PPN: LOU-AE4224PG

CAD

$612.57

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

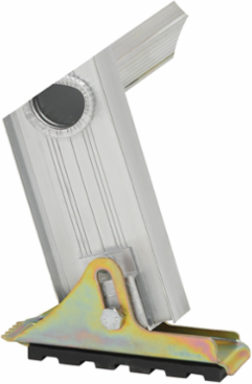

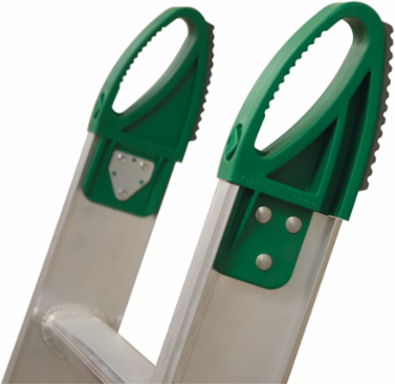

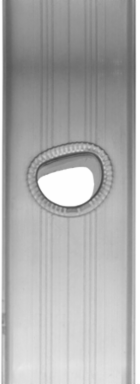

This Louisville 24-foot aluminum extension ladder has a 225 lb load capacity, rated ANSI Type II duty rating. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder also includes the patented ProGrip slip resistant tread integrated onto the ladder caps to protect the work surface from damage. QuickLatch RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. This ladder also features outside slide guides, D-shape rungs fully serrated for a slip resistant surface, rope and pulley, modified I-beam for a more stable connection and to prevent twisting, and swivel safety shoes to be used as tread down or in spike position. The Louisville AE4224PG aluminum extension ladder meets or exceeds the safety standards set by ANSI and OSHA.

Features

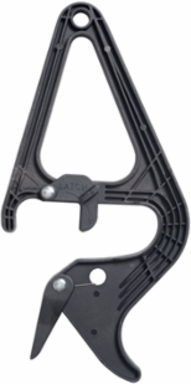

  • Includes our custom engineered MAXLOCK that is made from a patented and advanced molecular polymer
  • Our MAXLOCK is the strongest toughest lightest rung lock ever made
  • D-Shaped Rungs
  • Patented

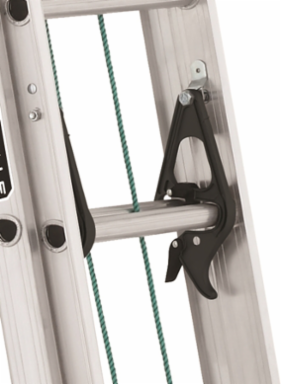

  • Quicklatch Runglock System
  • Swivel
  • Safety Shoes

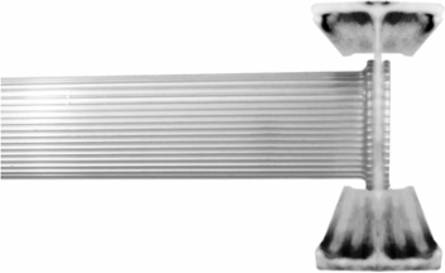

  • Modified I-Beam
  • Rope And Pulley Included
  • ANSI Certified
  • OSHA Certified

Specifications

Key Specifications

Style
Standard
Load Capacity (lbs)
225
Number of Steps
24
Step Depth
1.5
Weight
38
Open Height (in)
21
Open Width (in)
17.13
Closed Depth
6.00
Section Length (ft)
12
Max. Extended Length (ft)
21
Inside Width Base (in)
15.25
Outside Width Base (in)
17.13
Duty RatingType II
Size24
Rung TypeD-rung
MaterialAluminum
Maximum Standing Height (in)21’
Open Depth (in)5.25
Closed Height12.5
Closed Width (in)17.125
Total Length (ft)24
Rail Depth (in)3
Inside Width Fly (in)14.32
Outside Width Fly (in)16.19
