Louisville Ladder

Louisville Ladder AE3228 28 Foot Aluminum Extension Ladder, Type I, 250 lb Load Capacity

  • MPN: AE3228
  • UPC: 728865015938
  • PPN: LOU-AE3228

CAD

$839.37

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This Louisville 28 foot aluminum extension ladder has a 250 pound load capacity, rated ANSI Type I. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder includes the patented QuickLatch RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. This ladder also features outside slide guides, D-shape rungs fully serrated for a slip resistant surface, mar resistant rail end caps, rope and pulley, modified I-beam for a more stable connection and to prevent twisting, and swivel safety shoes to be used as tread down or in spike position. The Louisville AE3228 aluminum extension ladder meets or exceeds the safety standards set by ANSI and OSHA.

Features

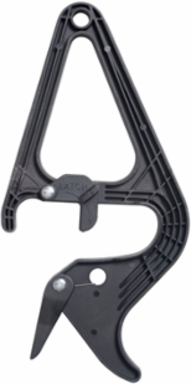

  • Includes our custom engineered MAXLOCK that is made from a patented and advanced molecular polymer. Our MAXLOCK is the strongest toughest lightest rung lock ever made

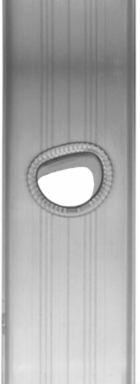

  • D-Shaped Rungs

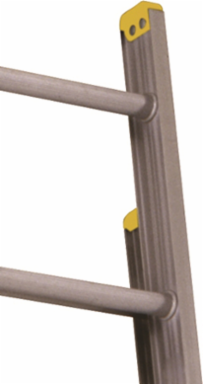

  • Mar-Resistant Rail End Caps

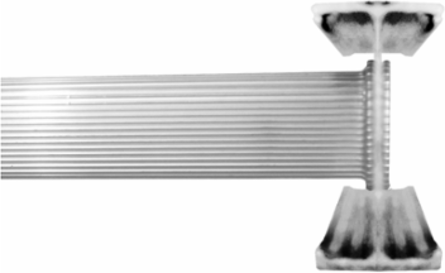

  • Modified I-Beam

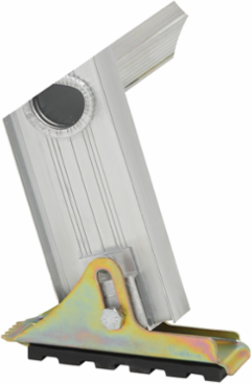

  • Swivel Safety Shoes
  • Patented Quicklatch Runglock System
  • Rope And Pulley Included
  • ANSI Certified
  • OSHA Certified

Specifications

Key Specifications

Style
Standard
Load Capacity (lbs)
250
Number of Steps
28
Step Depth
1.5
Weight
53
Closed Volume (cu. ft.)
11.952
Closed Depth
6.625
Section Length (ft)
14
Max. Extended Length (ft)
25
Inside Width Base (in)
15.250
Outside Width Base (in)
17.500
Duty RatingType I
Size28
Rung TypeD-rung
MaterialAluminum
Maximum Standing Height (in)25’
Closed Height172
Closed Width (in)18.125
Total Length (ft)28
Rail Depth (in)3
Inside Width Fly (in)13.875
Outside Width Fly (in)16.125
