Louisville Ladder AE3240 Louisville Ladder 40-Foot Aluminum Multi-Section Extension Ladder, Type I, 250-pound Load Capacity, AE3240
Louisville Ladder AE3240 Louisville Ladder 40-Foot Aluminum Multi-Section Extension Ladder, Type I, 250-pound Load Capacity, AE3240
- MPN: AE3240
- UPC: 728865015983
- PPN: LOU-AE3240
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1276.27/ EA
Description
This Louisville 40 foot aluminum extension ladder has a 250 pound load capacity, rated ANSI Type I. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder also includes the patented QuickLatch RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. This ladder also features outside slide guides, D-shape rungs fully serrated for a slip resistant surface, mar resistant rail end caps, rope and pulley, modified I-beam for a more stable connection and to prevent twisting, and swivel safety shoes to be used as tread down or in spike position. The Louisville AE3240 aluminum extension ladder meets or exceeds the safety standards set by ANSI and OSHA.
Features
- Includes our custom engineered MAXLOCK that is made from a patented and advanced molecular polymer. Our MAXLOCK is the strongest toughest lightest rung lock ever made

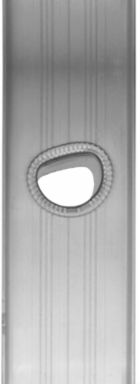

- D-Shaped Rungs

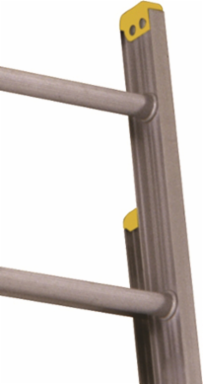

- Mar-Resistant Rail End Caps

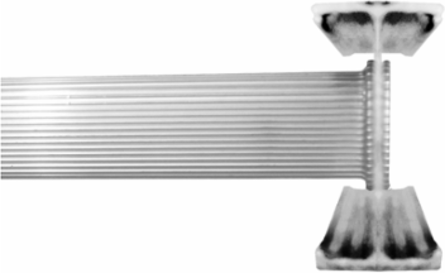

- Modified I-Beam

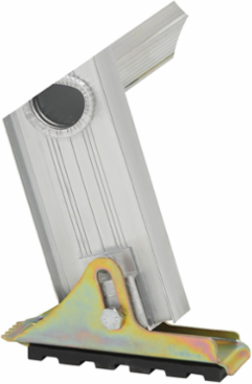

- Swivel Safety Shoes
- Patented Quicklatch Runglock System
- Rope And Pulley Included
- ANSI Certified
- OSHA Certified
Specifications
Specifications
- Style
- Standard
- Load Capacity (lbs)
- 250
- Number of Steps
- 40
- Step Depth
- 1.5
- Weight
- 80
- Closed Volume (cu. ft.)
- 16.955
- Closed Depth
- 6.625
- Section Length (ft)
- 20
- Max. Extended Length (ft)
- 35
- Inside Width Base (in)
- 15.250
- Outside Width Base (in)
- 17.500
Duty RatingType I
Size40
Rung TypeD-rung
MaterialAluminum
Maximum Standing Height (in)35’
Closed Height244
Closed Width (in)18.125
Total Length (ft)40
Rail Depth (in)3
Inside Width Fly (in)13.750
Outside Width Fly (in)16.125
