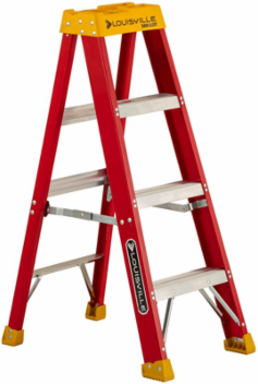

Louisville Ladder L-3016-04 4 Foot Fiberglass Step Ladder, Type IA, 300 lbs Load Capacity
- MPN: L-3016-04
- UPC: 728865108487
- PPN: LOU-L-3016-04
CAD
$181.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Louisville 4 foot non-conductive fiberglass step ladder has a load capacity of 300lbs, rated ANSI Type IA. This ladder is equipped with a molded top with handyman's tool slots, heavy-duty gusset bracing, slip-resistant boot, inside spreader braces, wide back braces, and double-rivet step construction. The Louisville L-3016-04 step ladder meets or exceeds the safety standards set by ANSI and OSHA.
Features

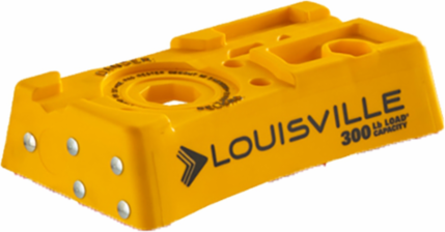

- Molded Top With Handyman's Tool Slots

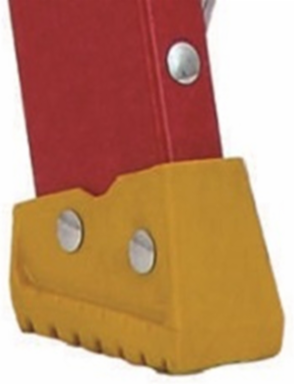

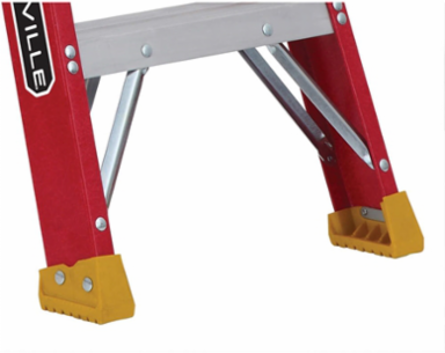

- Slip-Resistant Boot

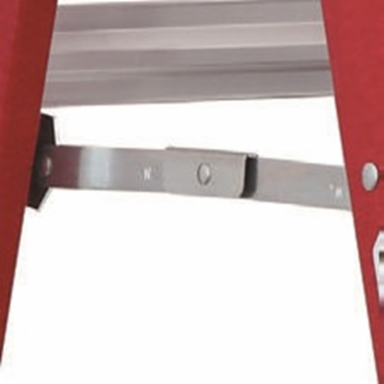

- Inside Spreader Braces

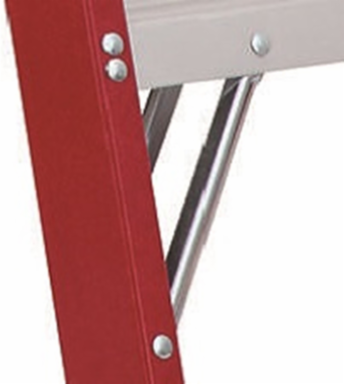

- Heavy-Duty Gusset Bracing
- Wide Back Braces
- ANSI Certified
- OSHA Certified
Documentation & Downloads
Specifications
Key Specifications
| Style | Standard |
|---|---|
| Load Capacity (lbs) | 300 |
| Number of Steps | 3 |
| Step Depth | 3 |
| Weight | 14 |
| Maximum Standing Height (in) | 23 |
| Open Volume (cu. ft.) | 2.73 |
| Open Height (in) | 45.48 |
| Open Width (in) | 19.5 |
| Closed Height | 49.4 |
| Closed Width (in) | 19.5 |
| Duty Rating | Type IA |
|---|---|
| Size | 4 |
| Rung Type | Standard Step |
| Material | Fiberglass |
| Maximum Standing Height (in) | 1' 11'' |
| Maximum Reach (in) | 102 |
| Open Volume (cu. m.) | 0.42 |
| Open Depth (in) | 28.7 |
| Closed Volume (cu. ft.) | 3.249 |
| Closed Depth | 6 |
| Top Width Closed (in) | 13.23 |
