Louisville Ladder FE3224 Louisville Ladder 24-Foot Fiberglass Extension Ladder, Type IA, 300-pound Load Capacity, FE3224
Louisville Ladder FE3224 Louisville Ladder 24-Foot Fiberglass Extension Ladder, Type IA, 300-pound Load Capacity, FE3224
- MPN: FE3224
- UPC: 728865200051
- PPN: LOU-FE3224
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$600.37/ EA
Description
This Louisville 24 foot fiberglass extension ladder has a 300 pounds. load capacity, rated ANSI Type IA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder also includes the patented QuickLatch system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. The ladder features outside slide guides, D-shaped rungs fully serrated for a slip resistant surface, non-marring rail end caps, rope and pulley and steel swivel safety shoes with metal shield to be used with the tread down or in spike position. The Louisville FE3224 fiberglass extension ladder meets or exceeds the safety standards set by ANSI and OSHA.
Features
- Includes our custom engineered MAXLOCK that is made from a patented and advanced molecular polymer. Our MAXLOCK is the strongest toughest lightest rung lock ever made

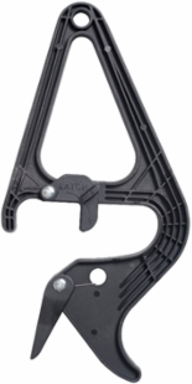

- Patented Quicklatch Runglock System

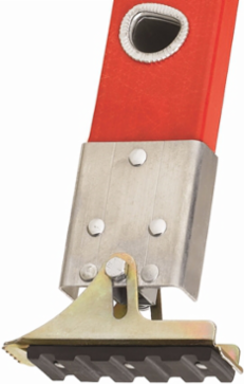

- Steel Swivel Safety Shoe With Metal Shield

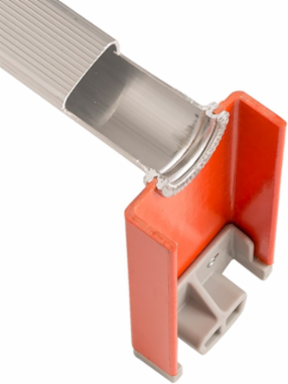

- Direct Rung-Rail Connection
- Mar-Resistant Rail End Caps
- Outside Slide Guides

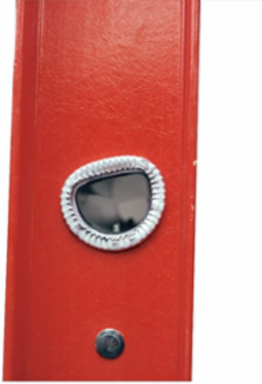

- D-Shaped Rungs
- ANSI Certified
- OSHA Certified
Specifications
Specifications
- Style
- Standard
- Load Capacity (lbs)
- 300
- Number of Steps
- 24
- Step Depth
- 1.5
- Weight
- 51
- Closed Volume (cu. ft.)
- 9.631
- Closed Depth
- 6.25
- Section Length (ft)
- 12
- Max. Extended Length (ft)
- 21
- Inside Width Base (in)
- 14.645
- Outside Width Base (in)
- 17.063
Duty RatingType IA
Size24
Rung TypeD-rung
MaterialFiberglass
Maximum Standing Height (in)17.250
Closed Height149.5
Closed Width (in)17.812
Total Length (ft)24
Rail Depth (in)3.25
Inside Width Fly (in)13.688
Outside Width Fly (in)16.088
