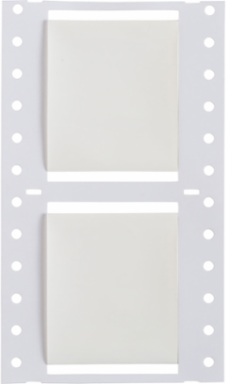

Brady LSZH-1500-150-WT-S Low Smoke Zero Halogen PermaSleeve Heat Shrink Tubing, 1.5" Dia x 1.5" W, White, Roll of 100
Brady LSZH-1500-150-WT-S Low Smoke Zero Halogen PermaSleeve Heat Shrink Tubing, 1.5" Dia x 1.5" W, White, Roll of 100
- MPN: LSZH-1500-150-WT-S
- UPC: 662820825609
- PPN: BRD-LSZH-1500-150-WT-S
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$501.87/ EA
Description
The B-7641 Heat Shrink Sleeve from Brady® is a low smoke, halogen free identification material used for wire and cable identification.
Features
- Made of halogen-free, flexible flame-retardant, heat-shrinkable polyolefin tubing, offering fire safety properties and minimal smoke emission
- Compatible with the most stringent requirements in the market today to enhance fire safety needs
- 2:1 heat-shrink ratio
- Use with thermal transfer printers and Brady's R6000 series halogen-free ribbon
Specifications
Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- White
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Quantity per Row
- 1
- Shrink Ratio
- 2:1
- Suggested Ribbon Series
- R6000 Halogen Free; R6600
- Trade Name
- PermaSleeve®
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Flame-retardant; Heat-shrinkable; Low-smoke; Zero-halogen
- SAP B-Number
- B-7641
- Diameter as Supplied (mm/cm/m)
- 38.1 mm
- Dimensions (Metric)
- 61.8 mm H
- Height (in/ft/yd)
- 2.433 in
- Maximum Service Temperature °C
- 105 °C
- Maximum Wire Diameter (in/ft/yd)
- 1.45 in
- Minimum Service Temperature °C
- -55 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.75 in
- Minimum Wire Gauge
- 0 AWG
- Recovered Diameter (mm/cm/m)
- 19.1 mm
- Recovered Wall Thickness (mm/cm/m)
- 0.97 mm
- Roll Width (mm/cm/m)
- 38.1 mm
- Sleeve Size (mm/cm/m)
- 38.1 mm Dia x 38.1 mm W
- Sleeve Width (mm/cm/m)
- 38.1 mm
- Web Width (in/ft/yd)
- 3.49 in
- Wire Diameter Range
- 0.75 in to 1.45 in
Brand NameBrady®
Enables Industry ComplianceASTM D 257; ASTM D 2671; ASTM D 2671C; ASTM D 570; ASTM D 635; ASTM D 638; ASTM D 792; Halogen Free (DIN VDE 0472 part 815); MIL-STD-202; SAE-AS-81531
For Use with PrinterBBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Primary Noun, Basic FunctionSleeve
Printable SidesSingle-Side Printable
Quantity per Roll100
Recommended RibbonIP-R6007; R6007
Sleeve SlitsNo
Total Quantity100
Brady Material NumberB-7641
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
Diameter as Supplied (in/ft/yd)1.5 in
Dimensions2.433 in H
Dimensions 22.433 in H
Height (mm/cm/m)61.8 mm
Maximum Service Temperature °F221 °F
Maximum Wire Diameter (mm/cm/m)36.8 mm
Minimum Service Temperature °F-67 °F
Minimum Wire Diameter (mm/cm/m)19.1 mm
Recovered Diameter (in/ft/yd)0.75 in
Recovered Wall Thickness (in/ft/yd)0.038 in
Roll Width (in/ft/yd)1.5 in
Sleeve Size (in/ft/yd)1.5 in Dia x 1.5 in W
Sleeve Width (in/ft/yd)1.5 in
Vertical Repeat3 in
Web Width (mm/cm/m)88.65 mm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliant
- Yes
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
