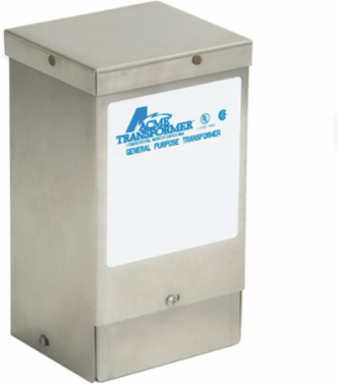

Acme Electric T253009SS Low Voltage Distribution Transformer 0.75kVA 120/240V Wall-Mounted
- MPN: T253009SS
- UPC: 047503130520
- PPN: HBL-T253009SS
- UNSPSC: 39121001
CAD
$1375.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Low Voltage Distribution Transformer - Single Phase, 240X480 - 120/240V, 0.75kVA, 316 Stainless Steel
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Dimensions
- 4.5 in x 4.75 in x 9.68 in
- Max Temperature Rise
- 115 Degrees Celsius
- Product Type
- Dry Type Distribution Transformer
- Frequency Rating
- 50/60 Hz
- Length
- 4.5 in
- Primary Voltage
- 240 X 480 V
- UL Insulation Class
- 155°C
- Weight
- 19 lb.
- Mounting Type
- Wall
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- R
- Sub Class Code
- D10D100
- Winding Material
- CU
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00047503130520
- Pallet Length
- 42.000 in
- Pallet Width
- 40.000 in
CSA StandardC22.2 No. 47
kVA0.75
Product CategoryDry Type Distribution Transformer
Secondary Voltage120/240 V
Height9.68 in
MountingWall
Width4.75 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504314065
Stock IndicatorN - Non-stock
Electrostatic ShieldShielded
ConstructionEncapsulated
BOX SIZE9.000x14.000x9.000 (in)
Pallet Height18.000 in
Pallet Weight450.000 lb.
NAICS Code335311
Certifications
- Buy American Compliant
- Contact Manufacturer
