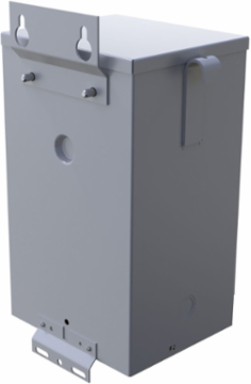

Acme Electric T2531141S Low Voltage Distribution Transformer 5kVA, 600/120-240V, Wall Mounted

MPN: T2531141S
UPC: 047503086551
PPN: HBL-T2531141S
UNSPSC: 39121001

$2078.55

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Low Voltage Distribution Transformer - Single Phase, 600 - 120V/240V, 5kVA

Features

Quiet operation with sound levels below NEMA standards
Electrostatic shield for enhanced protection

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
CSA Standard	C22.2 No. 47
kVA	5.0
Product Category	Dry Type Distribution Transformer
Secondary Voltage	120/240 V
Frequency Rating	60 Hz
Length	7.13 in
Primary Voltage	600 V
UL Insulation Class	180°C
Weight	75 lb.
Mounting Type	Wall
ARRA Compliant	Contact Manufacturer
Freight Class Code	06342001
Image Actual Or Representative	A
Sub Class Code	D10D100
Electrostatic Shield	Shielded
Construction	Encapsulated
BOX SIZE	9.000x14.000x12.000 (in)
Pallet Height	19.000 in
Pallet Weight	990.000 lb.
NAICS Code	335311

BNFC Taps	2
Dimensions	7.13 in x 10.31 in x 14.38 in
Max Temperature Rise	115 Degrees Celsius
Product Type	Dry Type Distribution Transformer
Taps % Steps	5%
Height	14.38 in
Mounting	Wall
Width	10.31 in
UL Standard	UL 506
Material type	ZFIN
Nema Rating	NEMA 3R
Class Code	D10
Harmonization Code	8504320000
Stock Indicator	S - Shelf Stock
Buy America(n) Qualified	Contact Manufacturer
Winding Material	CU
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00047503086551
Pallet Length	40.000 in
Pallet Width	40.000 in
