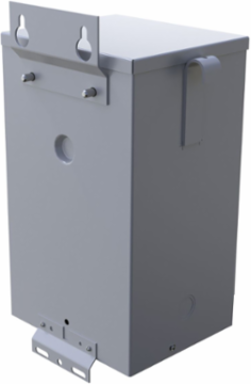

Acme Electric T2530134S Low Voltage Distribution Transformer 3kVA, 240X480V, 120/240V, Wall Mount, NEMA 3R
- MPN: T2530134S
- UPC: 047503001264
- PPN: HBL-T2530134S
- UNSPSC: 39121001
CAD
$1102.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Low Voltage Distribution Transformer - Single Phase, 240X480 - 120/240V, 3kVA
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Dimensions
- 7.13 in x 10.31 in x 11.5 in
- Max Temperature Rise
- 115 Degrees Celsius
- Product Type
- Dry Type Distribution Transformer
- Frequency Rating
- 60 Hz
- Length
- 7.13 in
- Primary Voltage
- 240 X 480 V
- UL Insulation Class
- 180°C
- Weight
- 55 lb.
- Mounting Type
- Wall
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- A
- Sub Class Code
- D10D100
- Winding Material
- CU
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00047503001264
- Pallet Length
- 40.000 in
- Pallet Width
- 40.000 in
CSA StandardC22.2 No. 47
kVA3.0
Product CategoryDry Type Distribution Transformer
Secondary Voltage120/240 V
Height11.5 in
MountingWall
Width10.31 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504320000
Stock IndicatorS - Shelf Stock
Electrostatic ShieldShielded
ConstructionEncapsulated
BOX SIZE9.000x11.000x11.000 (in)
Pallet Height26.000 in
Pallet Weight1297.000 lb.
NAICS Code335311
Certifications
- Buy American Compliant
- Contact Manufacturer
