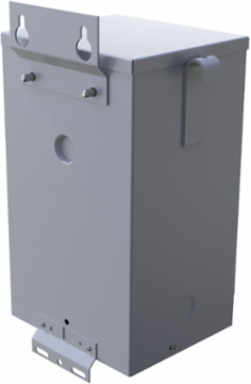

Acme Electric T279743S Low Voltage Distribution Transformer 3kVA, 120/240V, Wall Mount, NEMA 3R
Acme Electric T279743S Low Voltage Distribution Transformer 3kVA, 120/240V, Wall Mount, NEMA 3R
- MPN: T279743S
- UPC: 047503102060
- PPN: HBL-T279743S
- UNSPSC: 39121001
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1298.57/ EA
Description
Low Voltage Distribution Transformer - Single Phase, 120/208/240/277 - 120/240V, 3kVA
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Specifications
Specifications
- Buy American Compliant
- Contact Manufacturer
- CSA Standard
- C22.2 No. 47
- Each - Width
- 10.31 in
- Max Temperature Rise
- 115 Degrees Celsius
- Product Type
- Dry Type Distribution Transformer
- Frequency Rating
- 60 Hz
- Length
- 7.13 in
- Primary Voltage
- 120/208/240/277 V
- UL Insulation Class
- 180°C
- Weight
- 55 lb.
- Mounting Type
- Wall
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- A
- Sub Class Code
- D10D100
- Winding Material
- CU
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00047503102060
- Pallet Length
- 40.000 in
- Pallet Width
- 40.000 in
Country of OriginMX
Dimensions7.13 in x 10.31 in x 11.5 in
kVA3.0
Product CategoryDry Type Distribution Transformer
Secondary Voltage120/240 V
Height11.5 in
MountingWall
Width10.31 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504320000
Stock IndicatorS - Shelf Stock
Electrostatic ShieldShielded
ConstructionEncapsulated
BOX SIZE9.000x11.000x11.000 (in)
Pallet Height48.000 in
Pallet Weight1160.000 lb.
