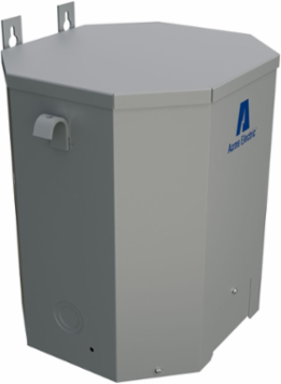

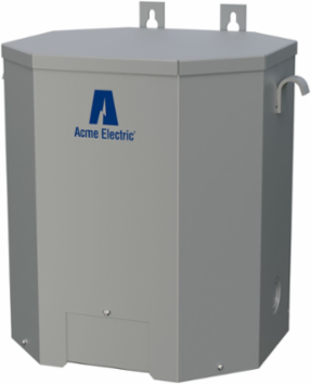

Acme Electric T2536151S Low Voltage Distribution Transformer 7.5kVA, 600V, 120/240V, Wall Mount
- MPN: T2536151S
- UPC: 047503084502
- PPN: HBL-T2536151S
- UNSPSC: 39121001
CAD
$2902.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Low Voltage Distribution Transformer - Single Phase, 600 - 120V/240V, 7.5kVA
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- CSA Standard
- C22.2 No. 47
- kVA
- 7.5
- Product Category
- Dry Type Distribution Transformer
- Secondary Voltage
- 120/240 V
- Frequency Rating
- 60 Hz
- Length
- 10.84 in
- Primary Voltage
- 600 V
- UL Insulation Class
- 180°C
- Weight
- 115 lb.
- Mounting Type
- Wall
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- A
- Sub Class Code
- D10D100
- Winding Material
- AL
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00047503084502
- Pallet Length
- 40.000 in
- Pallet Width
- 40.000 in
BNFC Taps2
Dimensions10.84 in x 13.5 in x 15.19 in
Max Temperature Rise115 Degrees Celsius
Product TypeDry Type Distribution Transformer
Taps % Steps5%
Height15.19 in
MountingWall
Width13.5 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504320000
Stock IndicatorN - Non-stock
Electrostatic ShieldShielded
ConstructionEncapsulated
BOX SIZE17.000x13.000x15.000 (in)
Pallet Height22.000 in
Pallet Weight699.000 lb.
NAICS Code335311
Certifications
- Buy American Compliant
- Contact Manufacturer
