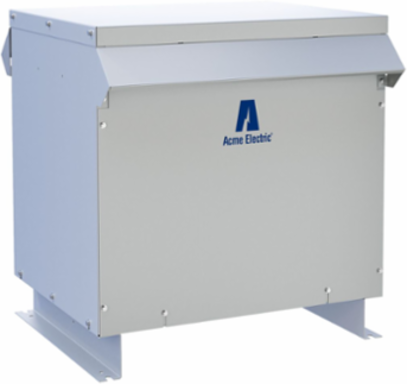

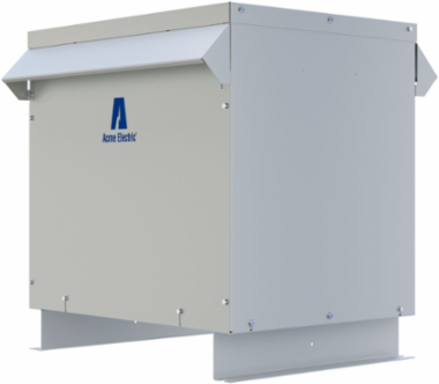

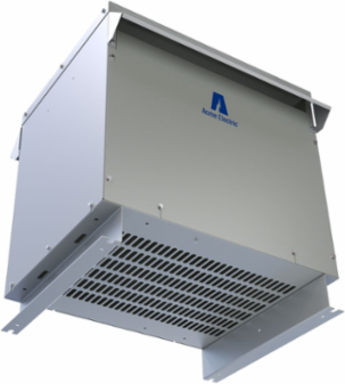

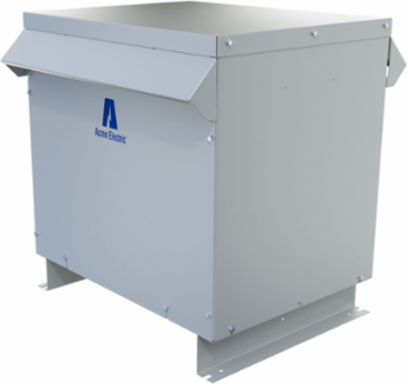

Acme Electric T3045K0013BS Low Voltage Distribution Transformer 3-Phase 480/208Y-120V 45kVA NEMA 3R
- MPN: T3045K0013BS
- UPC: 047503094037
- PPN: HBL-T3045K0013BS
- UNSPSC: 39121001
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Low Voltage Distribution Transformer Three Phase 480Δ - 208Y/120V, 45kVA, Shielded
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Efficiency | 98.40% |
| Length | 19.37 in |
| Weight | 441 lb. |
| Class Code | D10 |
| Harmonization Code | 8504330020 |
| Sub Class Code | D10D100 |
| BOX SIZE | 37.000x38.000x38.000 (in) |
| Pallet Height | 37.000 in |
| Pallet Weight | 445.000 lb. |
| NAICS Code | 3353111700 |
| Dimensions | 19.37 in x 24.39 in x 25.5 in |
|---|---|
| Height | 25.5 in |
| Width | 24.39 in |
| Nema Rating | NEMA 3R |
| Freight Class Code | 06342001 |
| Image Actual Or Representative | A |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00047503094037 |
| Pallet Length | 38.000 in |
| Pallet Width | 38.000 in |
