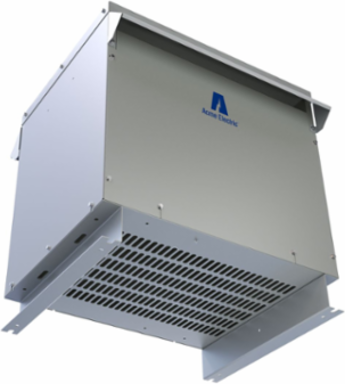

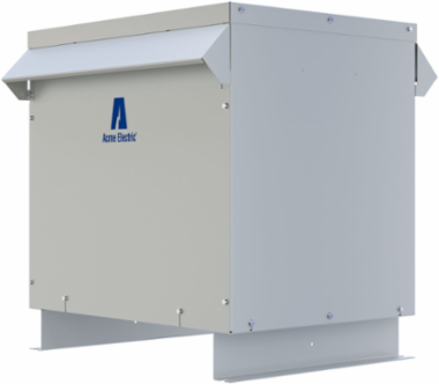

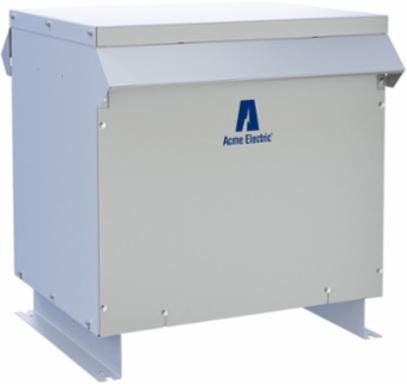

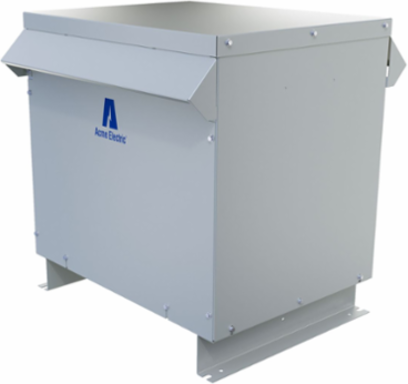

Acme Electric T3030K0013BS Low Voltage Distribution Transformer 3 Phase 30kVA 480-208Y/120V NEMA 3R
- MPN: T3030K0013BS
- UPC: 047503094662
- PPN: HBL-T3030K0013BS
- UNSPSC: 39121001
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Low Voltage Distribution Transformer Three Phase 480Δ - 208Y/120V, 30kVA, Shielded
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Efficiency | 98.23% |
| Length | 19.37 in |
| Weight | 365 lb. |
| Class Code | D10 |
| Harmonization Code | 8504330020 |
| Sub Class Code | D10D100 |
| BOX SIZE | 37.000x38.000x38.000 (in) |
| Pallet Height | 37.000 in |
| Pallet Weight | 349.000 lb. |
| NAICS Code | 335311 |
| Dimensions | 19.37 in x 24.39 in x 25.5 in |
|---|---|
| Height | 25.5 in |
| Width | 24.39 in |
| Nema Rating | NEMA 3R |
| Freight Class Code | 06342001 |
| Image Actual Or Representative | A |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00047503094662 |
| Pallet Length | 38.000 in |
| Pallet Width | 38.000 in |
