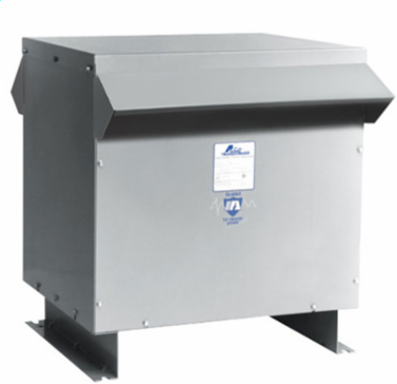

Acme Electric T3300K0053BS Low Voltage Distribution Transformer 300kVA 480Y/277V Dimensions 35.5 x 39.5 x 45.6 Inch
- MPN: T3300K0053BS
- UPC: 047503094396
- PPN: HBL-T3300K0053BS
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Low Voltage Distribution Transformer - Three Phase, 480Δ - 480Y/277V, 300kVA, Shielded
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Height | 45.6 in |
| Weight | 1938 lb. |
| Efficiency | 99.02% |
| Class Code | D10 |
| Harmonization Code | 8504330040 |
| Sub Class Code | D10D100 |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00047503094396 |
| Dimensions | 35.5 in x 39.5 in x 45.6 in |
|---|---|
| Length | 35.5 in |
| Width | 39.5 in |
| Nema Rating | NEMA 3R |
| Freight Class Code | 06342001 |
| Image Actual Or Representative | R |
| Winding Material | AL |
| BOX SIZE | (in) |
| NAICS Code | 335311 |
