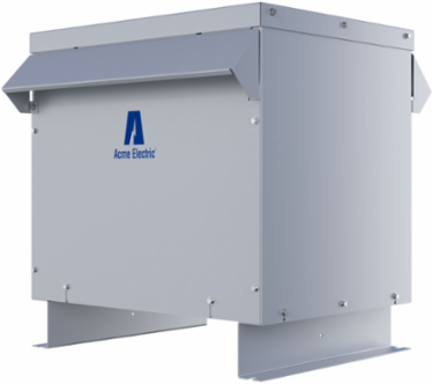

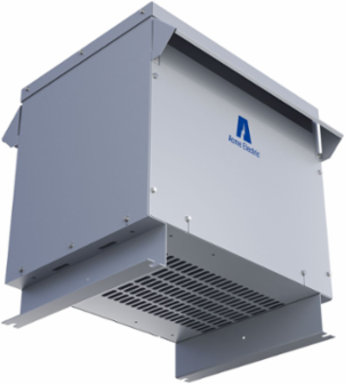

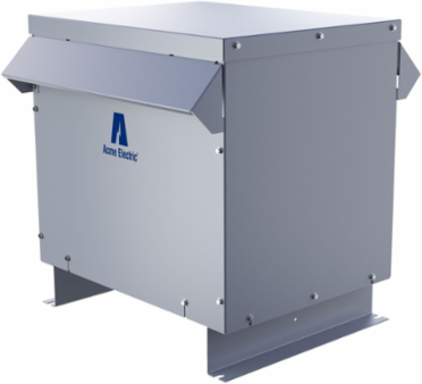

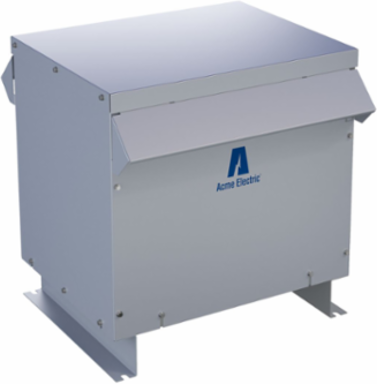

Acme Electric T3015K0170BS Low Voltage Distribution Transformer, 15kVA, 400Y/231V, NEMA 3R, 24.39 Inch Width
- MPN: T3015K0170BS
- UPC: 047503092750
- PPN: HBL-T3015K0170BS
- UNSPSC: 39121001
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Low Voltage Distribution Transformer - Three Phase, 190/200/208/220/240Δ - 400Y/231V, 15kVA, Shielded
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Dept of Energy Regulation
- Meets or exceed U.S. DOE 10 CFR Part 431
- kVA
- 15.0
- Product Category
- Dry Type Distribution Transformer
- Secondary Voltage
- 400Y/231 V
- Frequency Rating
- 60 Hz
- Length
- 19.37 in
- Primary Voltage
- 190/200/208/220/240D V
- UL Insulation Class
- 220°C
- Weight
- 290 lb.
- Mounting Type
- Floor
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- A
- Electrostatic Shield
- Shielded
- Construction
- Ventilated
- BOX SIZE
- 37.000x38.000x38.000 (in)
- Pallet Height
- 37.000 in
- Pallet Weight
- 304.000 lb.
- NAICS Code
- 335311
CSA StandardC22.2 No. 47
Dimensions19.37 in x 24.39 in x 25.5 in
Max Temperature Rise150 Degrees Celsius
Product TypeDry Type Distribution Transformer
Efficiency97.89%
Height25.5 in
MountingFloor
Width24.39 in
UL StandardUL 1561
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504320000
Sub Class CodeD10D100
Winding MaterialAL/CU
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00047503092750
Pallet Length38.000 in
Pallet Width38.000 in
