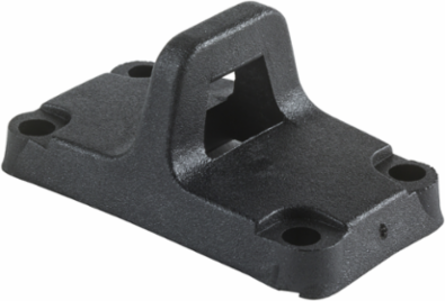

Schneider Electric XACA971 Harmony XAC Lower Support Ring for 22mm Pendant Control Station
- MPN: XACA971
- PPN: SCH-XACA971
CAD
$17.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XACA971 is a lower support ring for double insulated pendant control station for control circuit. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Czechia, Spain, France, Mexico |
|---|
Important Information Attributes
| Carbon Footprint Of The Distribution Phase [A4] | 0.0032468687, 0 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase [A5] | 0.0000773806, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Sustainable Packaging | No |
| Pep Code | ENVPEP0709005EN |
| Pep Verification Date | 2022-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168- |
| Energy Model - End Of Life [C1-c4] | Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168- |
| Accessory / Separate Part Category | mounting and fixing accessories |
| Accessory / Separate Part Type | support ring |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0140195804 |
|---|---|
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.1 kg CO2 eq., 0.0768509713 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Range Of Product | Harmony XAC |
| Software Version | EIME v5.9.4 |
| Total Lifecycle Carbon Footprint | 0.1 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | XAC is a complete ready to use pendant station for control of single-speed motors in Industrial application which has 10 years of product lifetime with 15% of use rate.& 10Product Standards- EN/IEC 60947-5-1, EN/IEC 60204-32 |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Czech Republic |
| Energy Model - Use [B6] | Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168- |
| Recyclability Potential In % | 32 |
| Accessory / Separate Part Destination | double insulated pendant control station |
| Accessory / Separate Part Designation | lower support ring |
| Package Weight(Lbs) | 16.0 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.0941948009 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP0709005EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP0709005EN |
| Packaging Made With Recycled Cardboard | No |
| Product Compatibility | XACA |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2022-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Range Of Product | Harmony XAC |
|---|
ETIM
| ETIM 8 | EC002024 |
|---|
| ETIM 9 | EC002024 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
