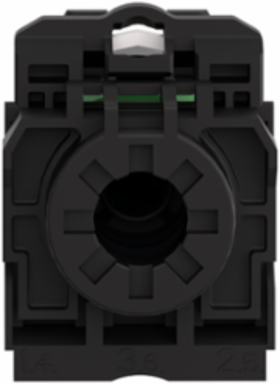

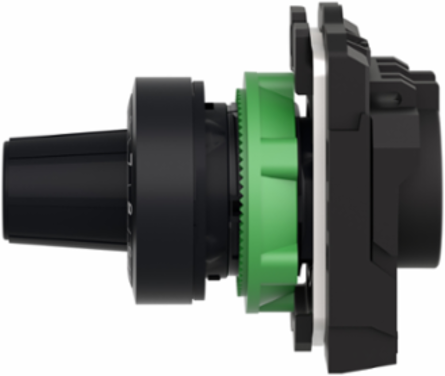

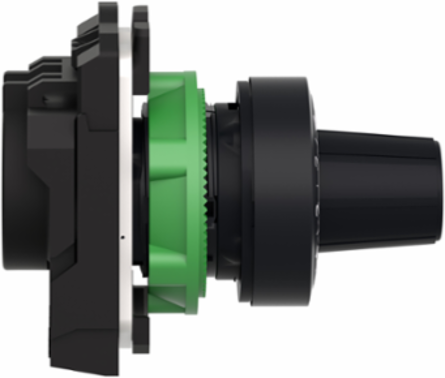

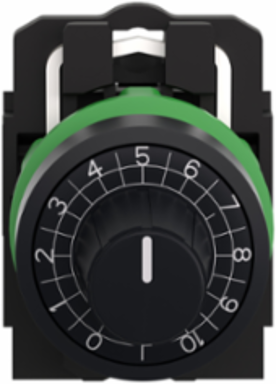

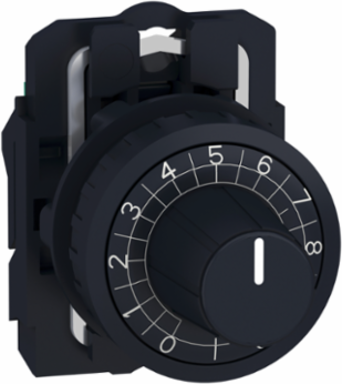

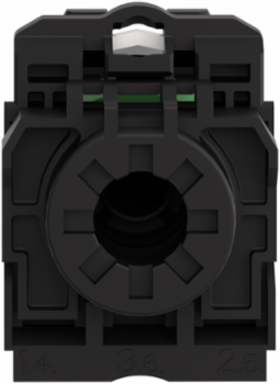

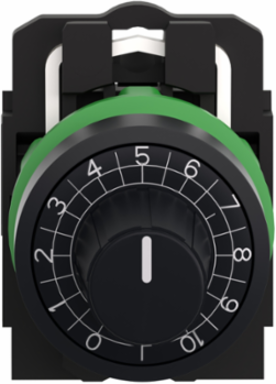

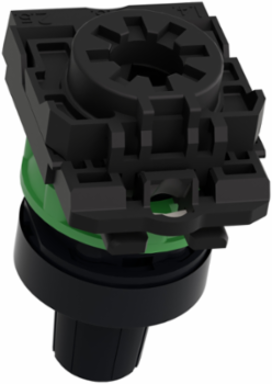

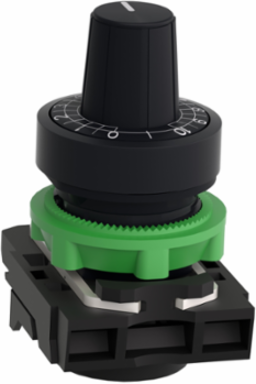

Schneider Electric ZB5AD922 Harmony XB5 Potentiometer Head with 22mm Mounting for 6.35mm Shaft
Schneider Electric ZB5AD922 Harmony XB5 Potentiometer Head with 22mm Mounting for 6.35mm Shaft
- MPN: ZB5AD922
- PPN: SCH-ZB5AD922
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$77.22/ EA
Description
This Harmony XB5,head and mounting base is used for potentiometer application. This head and mounting base for potentiometer provides an ergonomic external interface for controlling your machines thanks to its knurled knob head. It is ideal for controlling key parameters of automation components like drives and inverters and is easily installed and replaced on compatible potentiometers. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It has a metal bezel, this makes it ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Specifications
Environment
- Product Certifications
- CSA || UL listed || BV || DNV || LROS (Lloyds register of shipping) || GL
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Protective Treatment
- TH
Ik Degree Of ProtectionIK03 conforming to IEC 50102
StandardsIEC 60947-5-4 || IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || IEC 60947-5-1 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Electrical Shock Protection Classclass II IEC 60536
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Net Weight
- 0.032 kg
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
Device Presentationbasic element
Specifications
- Range Of Product
- Harmony XB5
- Product Or Component Type
- head + mounting base for potentiometer
- Head Type
- standard
- Bezel Material
- dark grey plastic
- Product Compatibility
- for use with Ø 6.35 mm shaft
Mounting Diameter22 mm
Shape Of Signaling Unit Headround
Sale Per Indivisible Quantity1
Operator Profileknurled knob, with white)
Device Short NameZB5
