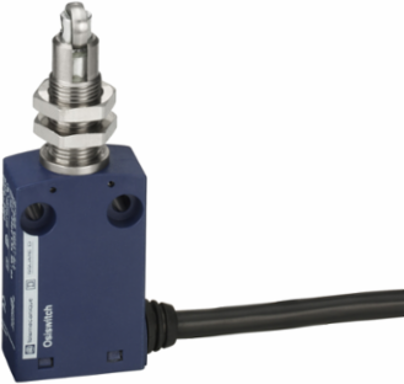

Telemecanique Sensors XCMN21F3L1 Limit switch, Limit switches XC Standard, XCMN, M12 steel roller plunger, 1NC+1 NO, snap, 1 m
- MPN: XCMN21F3L1
- PPN: TES-XCMN21F3L1
- UNSPSC: 39122213
CAD
$176.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, Limit switches XC Standard, XCMN, M12 steel roller plunger, 1NC+1 NO, snap, 1 m
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- linear
- Fixing Mode
- by the head
- Sensor Design
- miniature
- Head Material
- zamak
- Head Type
- M12 plunger head
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- plastic
- Number Of Poles
- 2
Range Of ProductTelemecanique Limit switches XC Standard
Type Of Operatorspring return roller plunger metal
Product Or Component Typelimit switch
Materialplastic
Type Of Approachtraverse approach, 2 directions
Contacts Type And Composition1 NC + 1 NO
Contact Operationsnap action
Device Short NameXCMN
Complementary
- Height
- 88-88 mm
- Electrical Connection
- fixed cable
- Net Weight
- 0.095 kg
- Switch Actuation
- by 30° cam
- Electrical Durability
- 5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening
- with
- Mechanical Durability
- 5000000 cycles
- Wire Insulation Material
- PvR
- Cable Composition
- 4 x 0.75 mm²
- Width
- 30 mm
- Maximum Resistance Across Terminals
- 25 MOhm IEC 60255-7 category 3
Short-Circuit Protection6 A cartridge fuse gG
Cable Length1 m
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60664 || 4 kV IEC 60947-1
[Ui] Rated Insulation Voltage300 V 3)UL 508 || 400 V 3)IEC 60947-5-1 || 300 V 3)CSA C22.2 No 14
Positive Opening Minimum Force35 N
Contacts Insulation FormZb
Maximum Actuation Speed10 cm/s
Minimum Force For Tripping7 N
Contact Code DesignationB300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
Depth16 mm
Environment
- Product Certifications
- UL || CCC || CSA
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 25 gn 18 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP65 IEC 60529
- Electrical Shock Protection Class
- class II IEC 61140 || class II NF C 20-030
Ik Degree Of ProtectionIK04 EN 50102
StandardsEN/IEC 60947-5-1 || EN/IEC 60204-1 || UL 508 || CSA C22.2 No 14
Vibration Resistance5 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111229EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI111211EN
