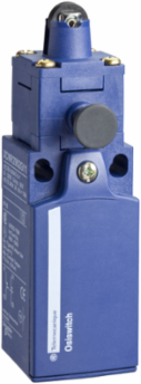

Telemecanique Sensors XCNR2102P20 Limit switch, Limit switches XC Standard, XCNR, steel roller plunger, 1NC+1 NO, snap, M20
- MPN: XCNR2102P20
- PPN: TES-XCNR2102P20
- UNSPSC: 39122213
CAD
$66.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, Limit switches XC Standard, XCNR, steel roller plunger, 1NC+1 NO, snap, M20
Documentation & Downloads
Specifications
Key Specifications
- Reset
- with
- Range Of Product
- Telemecanique Limit switches XC Standard
- Type Of Operator
- spring return roller plunger plastic
- Product Or Component Type
- limit switch
- Material
- plastic
- Type Of Approach
- lateral approach, 2 directions
- Contacts Type And Composition
- 1 NC + 1 NO
- Contact Operation
- snap action
- Device Short Name
- XCNR
Movement Of Operating Headlinear
Fixing Modeby the body
Sensor Designcompact
Head Materialplastic
Head Typeplunger head
Series Namestandard format
Body Typefixed
Body Materialplastic
Number Of Poles2
Complementary
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Cable Entry
- 1 entry tapped for M20 x 1.5 cable gland 7-13 mm
- Switch Actuation
- by 30° cam
- Positive Opening Minimum Force
- 20 N
- Contacts Insulation Form
- Zb
- Maximum Actuation Speed
- 0.3 m/s
- Contact Code Designation
- A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
Electrical Connectionscrew-clamp terminals 1 x 0.34...2 x 1.5 mm²
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60664 || 6 kV IEC 60947-1
[Ui] Rated Insulation Voltage300 VUL 508 || 500 V 3)EN/IEC 60947-1 || 300 VCSA C22.2 No 14
Positive Openingwith
Mechanical Durability100000 cycles
Minimum Force For Tripping12 N
Environment
- Product Certifications
- CCC || CSA || UL
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP65 conforming to IEC 60529
- Electrical Shock Protection Class
- class II IEC 61140 || class II NF C 20030
Ik Degree Of ProtectionIK04 EN 50102
StandardsIEC 60947-5-1 || EN 60204-1 || CSA C22.2 No 14 || IEC 60204-1 || UL 508 || EN 60947-5-1
Vibration Resistance25 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110606EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI110603EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
