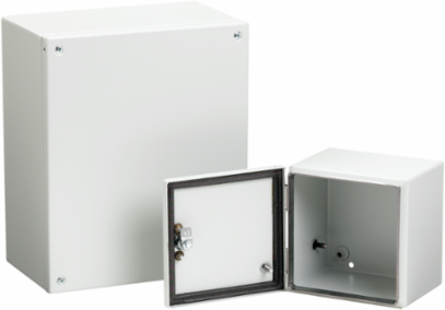

Nvent Hoffman LSC252015EMC InLine EMC Enclosure 250x200x150mm, Light Gray, Mild Steel, NEMA 1

InLine EMC Enclosure 250x200x150mm, Light Gray, Mild Steel, NEMA 1
  • MPN: LSC252015EMC
  • UPC: 783510300395
  • PPN: HOF-LSC252015EMC
  • UNSPSC: 39121324

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$794.77/ EA

Description

Whether protecting components from a signal or containing a signal, InLine EMC Enclosures have you protected. This InLine EMC Enclosure Screw Cover Type 1, LSC252015EMC Enclosure item measures 250x200x150mm with a material of Steel colored Lt Gray.

Features

  • Seams continuously welded and ground smooth
  • External formed body flange channels away liquids
  • Large perimeter body opening
  • Mounting holes in back of body for direct mounting or optional external mounting brackets
  • Bonding provision on cover and body
  • Metalized non-woven fabric EMI/RFI material covering UL94HP-rated urethane foam gasket
  • Plated interior surfaces for gasket contact areas and conduit entries
  • Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
  • Installation instructions
  • Shielding effectiveness greater than 50 dB at 1 GHz
  • INLINE EMC Screw-Cover Enclosures:
  • Captivated cover screws with sealing bushings
  • Integral gasket compression stops
  • INLINE EMC Hinged-Door Enclosures:
  • Door opens 180 degrees
  • Removable hinged door
  • Self-grounding, slotted quarter-turn latch
  • Finish: Textured RAL 7035 light-gray polyester powder paint inside and out over a plated interior
  • Shielding effectiveness tested in accordance with: IEEE 299, VG 95-373 part 15, MIL-STD-285

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
200
Protection Rating
NEMA Type 1
Finish
Powder Coated
Thickness (T)
1.5
IP Rating
IP54
Weight
7.1
Material
Steel
Color
LtGray
Height (H)250
Depth (D)150
Product FamilyInLine
Color CodeRAL 7035
Mounting (G x H)232 x 135
NEMA Rating1 Indoor, electrical protection
Sub BrandInLine
Size250x200x150mm
