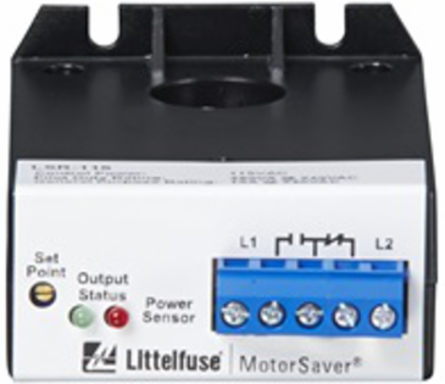

Littelfuse LSR-24 LSR-24 - LSR-XXX Series
- MPN: LSR-24
- UPC: 079458996685
- PPN: LTF-LSR-24
CAD
$284.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
LSR-24 - LSR-XXX Series
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage (V)
- 24VAC
- Output Form
- SPDT
- Sensor Hole Size
- 0.725 in diameter
- Isolation Voltage (V)
- 600VAC rms
- Mounting Method
- Four #6 screws 3/4 in in length
- Dimensions
- 1.67 H x 2.30 W x 3.56 D (42.4 x 58.4 x 90.4 mm)
Input Current Range (A)0.5 - 135A continuous
Output Load Rating (VA)Pilot Duty: 480VA @ 240VAC; General Purpose: 10A
IndicationOutput status LED; Relay status LED
Termination TypeTorque: 7 in.-lbs.; Wire: 12-24AWG
Operating Temperature-20° to 70°C (-4° to 158°F)
Weight (lbs/g)0.4 lb. (6.4 oz. 181.44 g)
