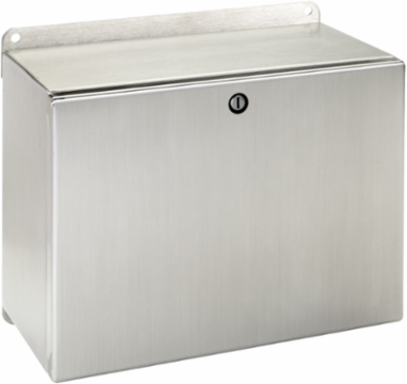

nVent Hoffman LWC237716SS InLine Landscape Enclosure Window Door Type 4X, 230x770x155mm, SS304 Brushed
- MPN: LWC237716SS
- UPC: 783510110468
- PPN: HOF-LWC237716SS
- UNSPSC: 39121324
CAD
$1656.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
InLine stainless steel enclosure great for many applications where a landscape orientation is ideal. This InLine Landscape Enclousre Window Door Type 4X, LWC237716SS item measures 230x770x155mm with a material of SS304, Brushed.
Features
- Full width bracket for mounting flexibility
- Seams continuously welded and ground smooth
- External formed body flange trough
- Large perimeter body opening
- Mounting brackets are spot-welded to top and bottom of enclosure
- Mounting brackets have predrilled mounting holes; customer-specific location holes can be drilled for mounting flexibility
- Seamless foam-in-place gasket
- M6 ground stud with base flange on body; M6 bonding provision with base flange on door
- Furnished hardware kit includes panel mounting screws and grounding hardware
- Hinged door with removable hinge pins and self-grounding quarter-turn latch system with double seal
- Door opens 180 degrees
- Window door models include 3/16-in. (4.8-mm) clear polycarbonate window mounted flush with door surface
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 770
- Protection Rating
- NEMA Type 12
- Finish
- Brushed #4
- Door Thickness
- 1.59
- Window Size (N)
- 28.31
- Mounting Studs (J)
- 28.57
- IP Rating
- IP66
- Weight
- 23.7
- Material
- Stainless Steel
Height (H)230
Depth (D)155
Product FamilyInLine
Body Thickness1.98
Clear Space Above Panel5.51
Mounting Hole Size29.19
Cover StyleWindow
NEMA Rating4X Watertight, corrosion-resistant
Sub BrandInLine
Size230x770x155mm
