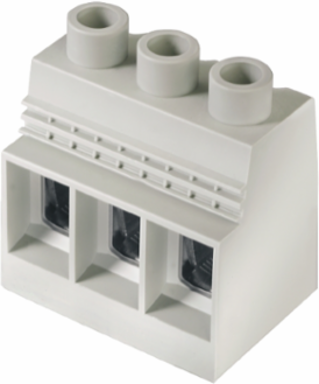

Weidmuller 1386580000 LXXX 15.00/07/90 4.5SN GY BX
- MPN: 1386580000
- PPN: WDM-1386580000
CAD
$35.56
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Printed circuit board terminals, 15.00 mm, Number of poles: 7, 90°, Solder pin length (l): 4.5 mm, tinned, Pebble grey, Clamping yoke connection, Clamping range, max. : 50 mm², Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
| Institute (UR) | UR |
|---|---|
| Rated voltage (Use group B / UL 1059) | 600 V |
| Rated current (Use group B / UL 1059) | 126 A |
| Wire cross-section, AWG, min. | AWG 20 |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (UR) | E60693 |
|---|---|
| Rated voltage (Use group C / UL 1059) | 600 V |
| Rated current (Use group C / UL 1059) | 126 A |
| Wire cross-section, AWG, max. | AWG 1 |
Approvals
| Approvals | EAC, UR |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|

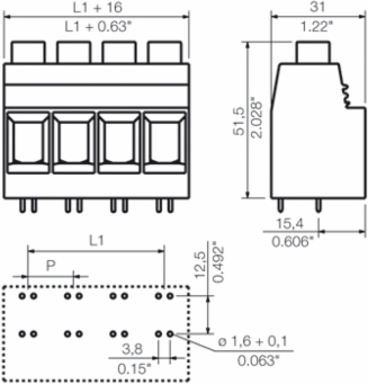

Dimensions And Weights
| Width | 106 mm |
|---|---|
| Height | 56 mm |
| Height of lowest version | 51.5 mm |
| Depth (inches) | 1.22 inch |
| Width (inches) | 4.173 inch |
|---|---|
| Height (inches) | 2.205 inch |
| Depth | 31 mm |
| Net weight | 209.145 g |

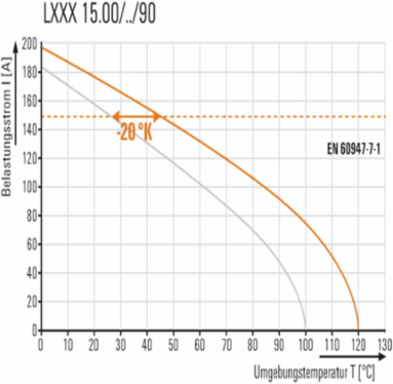

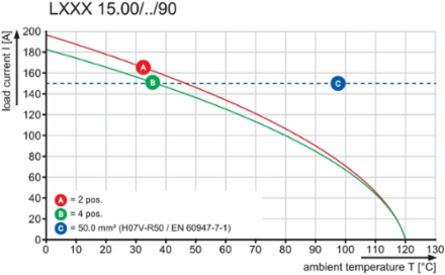

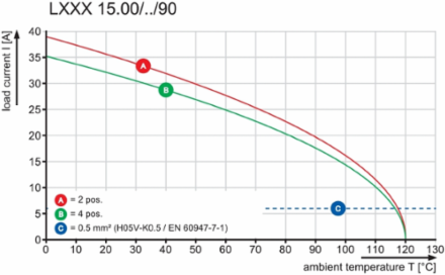

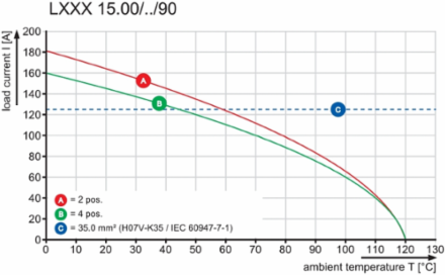

Rated Data Acc. To Iec
| Rated current, min. number of poles (Tu=20°C) | 150 A |
|---|---|
| Rated voltage for surge voltage class / pollution degree II/2 | 1,000 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 1,000 V |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 8 kV |
| Rated current, min. number of poles (Tu=40°C) | 150 A |
|---|---|
| Rated voltage for surge voltage class / pollution degree III/2 | 1,000 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 8 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 8 kV |
Material Data
| Insulating material | Wemid (PA) |
|---|---|
| Colour chart (similar) | RAL 7032 |
| Comparative Tracking Index (CTI) | ≥ 600 |
| UL 94 flammability rating | V-0 |
| GWFI | 960 °C |
| Contact surface | tinned |
| Storage temperature, min. | -25 °C |
| Max. relative humidity during storage | 80 % |
| Operating temperature, max. | 120 °C |
| Temperature range, installation, max. | 120 °C |
| Colour | Pebble grey |
|---|---|
| Insulating material group | I |
| Insulation strength | ≥ 108 Ω |
| GWIT | 960 °C |
| Contact material | Copper alloy |
| Layer structure of solder connection | 1.5-3 µm Ni / 4-6 µm Sn matt |
| Storage temperature, max. | 55 °C |
| Operating temperature, min. | -50 °C |
| Temperature range, installation, min. | -25 °C |
Classifications
| ETIM 6.0 | EC002643 |
|---|---|
| eClass 9.0 | 27-44-04-01 |
| eClass 10.0 | 27-44-04-01 |
| ETIM 7.0 | EC002643 |
|---|---|
| eClass 9.1 | 27-44-04-01 |
System Parameters
| Product family | OMNIMATE Power - series LXXX |
|---|---|
| Mounting onto the PCB | THT solder connection |
| Pitch in mm (P) | 15 mm |
| Number of poles | 7 |
| Number of rows | 1 |
| Solder pin dimensions | 1.2 x 1.2 mm |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| Screwdriver blade | 1.2 x 6.5 |
| Tightening torque, min. | 2.5 Nm |
| Clamping screw | M 6 |
| L1 in mm | 90 mm |
| Insulation strength | ≥ 108 Ω |
| Wire connection method | Clamping yoke connection |
|---|---|
| Conductor outlet direction | 90° |
| Pitch in inches (P) | 0.591 inch |
| Fitted by customer | No |
| Solder pin length (l) | 4.5 mm |
| Solder eyelet hole diameter (D) | 1.6 mm |
| Number of solder pins per pole | 4 |
| Screwdriver blade standard | DIN 5264 |
| Tightening torque, max. | 4 Nm |
| Stripping length | 18 mm |
| L1 in inches | 3.545 inch |
Packing
| Packaging | Box |
|---|---|
| VPE width | 0 |
| VPE length | 0 |
|---|---|
| VPE height | 0 |
Notes
| Notes | Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. IP 20 from 16 mm² to 50 mm² The test point can only be used as potential-pickup point. Wire-end ferrules are mandatory for stranded wires with more than 19 strands. |
|---|
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
|---|
Conductors Suitable For Connection
| Clamping range, min. | 0.5 mm² |
|---|---|
| Wire connection cross section AWG, min. | AWG 20 |
| Solid, min. H05(07) V-U | 0.5 mm² |
| Stranded, min. H07V-R | 6 mm² |
| Flexible, min. H05(07) V-K | 0.5 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min. | 0.5 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min. | 0.5 mm² |
| Max. clamping range | 50 mm² |
| Clamping range, max. | 50 mm² |
|---|---|
| Wire connection cross section AWG, max. | AWG 1 |
| Solid, max. H05(07) V-U | 16 mm² |
| Stranded, max. H07V-R | 50 mm² |
| Flexible, max. H05(07) V-K | 35 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max. | 35 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max. | 35 mm² |
Rated Data Acc. To Csa
| Rated voltage (Use group B / CSA) | 600 V |
|---|---|
| Rated voltage (Use group D / CSA) | 600 V |
| Rated current (Use group C / CSA) | 127 A |
| Wire cross-section, AWG, min. | AWG 20 |
| Rated voltage (Use group C / CSA) | 600 V |
|---|---|
| Rated current (Use group B / CSA) | 127 A |
| Rated current (Use group D / CSA) | 5 A |
| Wire cross-section, AWG, max. | AWG 1 |
