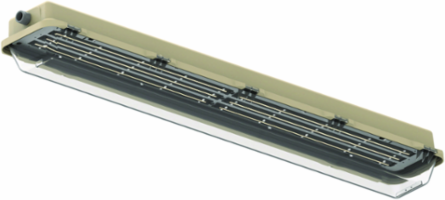

Killark LZ2NL1830 LED Linear Fixture, 120-277 VAC, 18W, 2557 Lumens, IP66, 5000K
Killark LZ2NL1830 LED Linear Fixture, 120-277 VAC, 18W, 2557 Lumens, IP66, 5000K
- MPN: LZ2NL1830
- UPC: 783936122441
- PPN: HBL-LZ2NL1830
- UNSPSC: 39111501
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2785.35/ EA
Description
LZ2NL Series Linear LED fixtures are made of a fiberglass reinforced polyester body with an impact resistant polycarbonate lens and use energy efficient LED's that are suitable for use in harsh and hazardous environments.
Features
- Standard supplemental 6KV surge protection
- Optional supplementary surge protection available 20KA/10KV (120-277 VAC), 10KA/10KV (347-480 VAC)
- Crisp White Light for Excellent Color Rendering – Chromaticity 5000K (CCT) approx. 70 CRI
- Energy Savings – High lumens per watt
- LED Array Life – to 212,000 maintenance free hours to 70% initial lumens
- Ambient suitability -40°C to 55°C up to 120W
- Instant On – Including after power interruption
- World Voltage 120 - 277VAC 50/60Hz
- Solderless LED Board Connections – Vibration Resistant
- LM80-08 Measurement of lumen maintenance for LED light sources
- LM79-08 Certified “Absolute” Photometry, including Chromaticity Color for Solid State Lighting
- L70 Values – Industry Nomenclature for Hours of use to 70% of initial Lumens – TM-21 & Calculated
- Nonmetallic Housing
- NEMA 44X & IP66 rated enclosure. Housing - one piece fiberglass reinforced polyester. Lens - clear Lexan® impact resistant polycarbonate lens (Lexan is a registered trademark of SABIC). Two 3/4" NPT Hubs - one at each end (includes one 3/4" close-up plug and two 3/4"x1/2" reducers for maximum user flexibility - hubs aluminum). Many midpower LEDs blend light to simulate fluorescent tube. Crisp White Light for Excellent Color Rendering - chromaticity 5000K (CCT); approx. 70 CRI. Energy Savings - high lumens per watt. LED Array Life - to 212,000 maintenance-free hours to 70% initial lumens. Ambient Suitability -40ºC to 55ºC up to 120W. Instant On - including after power interruption. World Voltage 120-277VAC 50/60Hz. Solder-less LED Board Connections - vibration resistant. LM80-08* measurement of lumen maintenance for LED light sources. LM79-08* certified "absolute" photometry, including chromaticity color for solid state lighting. L70 Values - industry nomenclature for hours of use to 70% of initial lumens - TM-21* & calculated.
Specifications
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Finish
- Natural
- Special Features
- NEMA 44X & IP66 rated enclosure. Housing - one piece fiberglass reinforced polyester. Lens - clear Lexan® impact resistant polycarbonate lens (Lexan is a registered trademark of SABIC). Two 3/4" NPT Hubs - one at each end (includes one 3/4" close-up plug and two 3/4"x1/2" reducers for maximum user flexibility - hubs aluminum). Many midpower LEDs blend light to simulate fluorescent tube. Crisp White Light for Excellent Color Rendering - chromaticity 5000K (CCT); approx. 70 CRI. Energy Savings - high lumens per watt. LED Array Life - to 212,000 maintenance-free hours to 70% initial lumens. Ambient Suitability -40ºC to 55ºC up to 120W. Instant On - including after power interruption. World Voltage 120-277VAC 50/60Hz. Solder-less LED Board Connections - vibration resistant. LM80-08* measurement of lumen maintenance for LED light sources. LM79-08* certified "absolute" photometry, including chromaticity color for solid state lighting. L70 Values - industry nomenclature for hours of use to 70% of initial lumens - TM-21* & calculated.
- Country of Origin
- United States
- Dimensions
- 4.5 in x 1 in x 6.5 in
- Height
- 6.5 in
- Length
- 4.5 in
- Optic Type
- Polycarbonate Lens - Clear
- Weight
- 12 lb.
- Application
- Linear LED luminaires are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, and NEMA 3, 4X IP66 areas where wind, water, snow or high ambients can be expected. They can be used in locations made hazardous by the presence of flammable vapors or gases or combustible dusts as defined by the NEC/CEC. Typical applications include manufacturing plants, and certain chemical and petrochemical processing facilities, sewage treatment plants, off-shore and dockside installations, garages, storage facilities, tunnels, and grain/food facilities.
- Frequency Rating
- 50/60 Hz
- Type
- Non-Metallic Linear LED Fixture
- Class Code
- D20
- Freight Class Code
- 10970009
- Image Actual Or Representative
- A
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 12
- Lumens Per Watt
- 142.1
- Material
- Polyester, Fiberglass Reinforced
- Base Unit of Measure
- EA
- Master Pack Description
- Each
MountingPendant;Surface
ARRA CompliantContact Manufacturer
ColorWhite
Hazardous Rating(s)Class I, Division 2, Groups A, B, C, D;Class I, Zone 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
IP RatingIP66
Lumens2557
Voltage Rating120-277 VAC
Width1 in
Finish TypeNatural
Mounting TypePendant;Surface
Wattage18 W
Description - InvoiceLZ2 18W LED 120-277VAC 50/60HZ FRP 2'
Harmonization Code9405429100
Lead Time30 wk
Order Multiple1 EA
Sub Class CodeD20D202
Lumen Range2,001-5,000 lm
Light SourceLED
SeriesLZ2NL Series
Carton - SCC-14 Next Lower Level Sub Pack00783936122441
