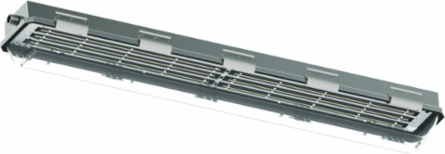

Killark LZ2SL12030 4.5 Inch Stainless Steel LED Linear Fixture, 120W, 16010 Lumens, IP66 Rated
- MPN: LZ2SL12030
- UPC: 783936122250
- PPN: HBL-LZ2SL12030
- UNSPSC: 39111501
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
LZ2SL Series Linear LED fixtures are made of a 316 Stainless Steel body with an impact resistant polycarbonate lens and use energy efficient LED's that are suitable for use in harsh and hazardous environments.
Features
- Standard supplemental 6KV surge protection
- Optional supplementary surge protection available 20KA/10KV (120-277 VAC), 10KA/10KV (347-480 VAC)
- Crisp White Light for Excellent Color Rendering – Chromaticity 5000K (CCT) approx. 70 CRI
- Energy Savings – High lumens per watt
- LED Array Life – to 212,000 maintenance free hours to 70% initial lumens
- Ambient suitability -40°C to 55°C up to 120W
- Instant On – Including after power interruption
- World Voltage 120 - 277VAC 50/60Hz
- Solderless LED Board Connections – Vibration Resistant
- LM80-08 Measurement of lumen maintenance for LED light sources
- LM79-08 Certified “Absolute” Photometry, including Chromaticity Color for Solid State Lighting
- L70 Values – Industry Nomenclature for Hours of use to 70% of initial Lumens – TM-21 & Calculated
- Stainless Steel Housing
- NEMA 44X & IP66 rated enclosure. Housing - 316 stainless steel. Lens - clear Lexan® impact resistant polycarbonate lens (Lexan is a registered trademark of SABIC). Two 3/4" NPT Hubs - one at each end (includes one 3/4" close-up plug and two 3/4"x1/2" reducers for maximum user flexibility - hubs aluminum). Many midpower LEDs blend light to simulate fluorescent tube. Crisp White Light for Excellent Color Rendering - chromaticity 5000K (CCT); approx. 70 CRI. Energy Savings - high lumens per watt. LED Array Life - to 212,000 maintenance-free hours to 70% initial lumens. Ambient Suitability -40ºC to 55ºC up to 120W. Instant On - including after power interruption. World Voltage 120-277VAC 50/60Hz. Solder-less LED Board Connections - vibration resistant. LM80-08* measurement of lumen maintenance for LED light sources. LM79-08* certified "absolute" photometry, including chromaticity color for solid state lighting. L70 Values - industry nomenclature for hours of use to 70% of initial lumens - TM-21* & calculated.
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Division 2, Groups A, B, C, D;Class I, Zone 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Lumens
- 16010
- Application
- Linear LED luminaires are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, and NEMA 3, 4X IP66 areas where wind, water, snow or high ambients can be expected. They can be used in locations made hazardous by the presence of flammable vapors or gases or combustible dusts as defined by the NEC/CEC. Typical applications include manufacturing plants, and certain chemical and petrochemical processing facilities, sewage treatment plants, off-shore and dockside installations, garages, storage facilities, tunnels, and grain/food facilities.
- Finish
- Natural
- Height
- 6.5 in
- Mounting
- Pendant;Surface
- Special Features
- NEMA 44X & IP66 rated enclosure. Housing - 316 stainless steel. Lens - clear Lexan® impact resistant polycarbonate lens (Lexan is a registered trademark of SABIC). Two 3/4" NPT Hubs - one at each end (includes one 3/4" close-up plug and two 3/4"x1/2" reducers for maximum user flexibility - hubs aluminum). Many midpower LEDs blend light to simulate fluorescent tube. Crisp White Light for Excellent Color Rendering - chromaticity 5000K (CCT); approx. 70 CRI. Energy Savings - high lumens per watt. LED Array Life - to 212,000 maintenance-free hours to 70% initial lumens. Ambient Suitability -40ºC to 55ºC up to 120W. Instant On - including after power interruption. World Voltage 120-277VAC 50/60Hz. Solder-less LED Board Connections - vibration resistant. LM80-08* measurement of lumen maintenance for LED light sources. LM79-08* certified "absolute" photometry, including chromaticity color for solid state lighting. L70 Values - industry nomenclature for hours of use to 70% of initial lumens - TM-21* & calculated.
- Voltage Rating
- 120-277 VAC
- Width
- 1 in
- Finish Type
- Natural
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- LZ2 120W LED 120-277VAC 50/60HZ 316SS 4'
- Harmonization Code
- 9405116020
- Lead Time
- 30 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D20D202
- Lumen Range
- 15,001-25,000 lm
- Light Source
- LED
- Series
- LZ2SL Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Dimensions4.5 in x 1 in x 6.5 in
IP RatingIP66
Optic TypePolycarbonate Lens - Clear
ColorGray
Frequency Rating50/60 Hz
Length4.5 in
Reflector TypeAluminim Reflector Plate
TypeStainless Steel Linear LED Fixture
Wattage120 W
Weight25 lb.
Mounting TypePendant;Surface
Class CodeD20
Freight Class Code10970009
Image Actual Or RepresentativeA
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging24
Lumens Per Watt133.4
MaterialStainless Steel
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936122250
NAICS Code3351222100
Certifications
- EU RoHS Indicator
- Contact Manufacturer
