Milwaukee Tool

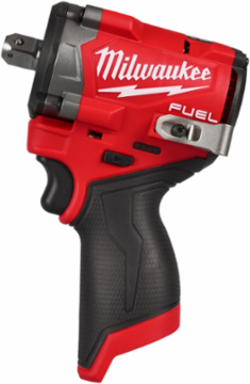

Milwaukee Tool 2563P-20 M12 FUEL™ Stubby 1/2" Impact Wrench w/ Pin Detent

M12 FUEL™ Stubby 1/2" Impact Wrench w/ Pin Detent
M12 FUEL™ Stubby 1/2" Impact Wrench w/ Pin Detent
M12 FUEL™ Stubby 1/2" Impact Wrench w/ Pin Detent
M12 FUEL™ Stubby 1/2" Impact Wrench w/ Pin Detent
M12 FUEL™ Stubby 1/2" Impact Wrench w/ Pin Detent
M12 FUEL™ Stubby 1/2" Impact Wrench w/ Pin Detent
M12 FUEL™ Stubby 1/2" Impact Wrench w/ Pin Detent
M12 FUEL™ Stubby 1/2" Impact Wrench w/ Pin Detent
M12 FUEL™ Stubby 1/2" Impact Wrench w/ Pin Detent
M12 FUEL™ Stubby 1/2" Impact Wrench w/ Pin Detent
M12 FUEL™ Stubby 1/2" Impact Wrench w/ Pin Detent
M12 FUEL™ Stubby 1/2" Impact Wrench w/ Pin Detent
M12 FUEL™ Stubby 1/2" Impact Wrench w/ Pin Detent
M12 FUEL™ Stubby 1/2" Impact Wrench w/ Pin Detent
  • MPN: 2563P-20
  • UPC: 045242804511
  • PPN: MIL-2563P-20
  • UNSPSC: 27112713

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$306.03/ EA

Description

The new MILWAUKEE® 1/2” Stubby Impact Wrench w/ Pin Detent delivers the Most Power, Is Lighter Weight & More Compact while delivering 50% Faster Application speeds. Leveraging POWERSTATE™ Brushless Motor, The Stubby Delivers 0-3,000 RPM with up to 550 ft-lbs of Nut Busting Torque, allowing the removal of the most corroded and stubborn applications. This Milwaukee® solution delivers on performance and size, at only 2.2 lbs bare tool. Users will experience less fatigue throughout their work week while fitting into tight spaces and allowing access where larger impacts can't fit without using additional accessories or disassembling components to reach the desired fastener. Equipped with Tri LED work lights to illuminate your work area without the frustration of shadows. 4-Mode DRIVE CONTROL™ for greater precision and customization to your desired power output, including AUTO SHUT-OFF™ that applies no more than 15 ft-lbs of torque for hand-tight applications that prevent overtightening when in forward. In reverse, bolt removal mode will slow down the RPM once the bolt is free to prevent bolts from flying around your work area. To change the modes, it is a single-handed operation. By shifting the forward-reverse shuttle into neutral and double-tapping the trigger, you will be able to change modes effortlessly.

Features

  • Lighter Weight & More Compact
  • Up to 550 ft-lbs of Nut-Busting Torque
  • 50% Faster Application Speeds
  • Mode 1 RPM: 0-930; Mode 2 RPM: 0-2,100; Mode 3 RPM: 0-3,000; Mode 4 RPM: 0-1,300
  • Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows
  • 4-Mode DRIVE CONTROL™ provides greater control over output speed and power. Includes auto shut-off and bolt-removal mode
  • Auto shut-off mode prevents over tightening and increases productivity by applying no more than 15 ft-lbs. of torque.
  • New Battery Isolation System for secured battery connection and reduced vibration transmitted to the pack
  • Compatible with all M12™ batteries & Chargers
  • Pin Detent securely locks sockets in place, especially while working overhead
  • Single handed mode changes for increased productivity
  • Mode 1 IPM: 0 - 1,500; Mode 2 IPM: 0 - 3,000; Mode 3 IPM: 0 - 3,300; Mode 4 IPM: 0 - 3,300

Specifications

Specifications

Country of Origin
Mexico
Cordless / Corded
Cordless
Impacts per Minute
3300
Variable Speed
Yes
Length
4.90 Inches
Color / Finish
Black, Red
Forward / Reverse Rocker Switch
Yes
Weight - Excluding Battery
2.20 lbs
Battery Voltage (V)
12
Charger Included
No
ETL Listed
No
Powered Tool Power SourceElectric - Cordless
Impact Wrench Drive Size1/2 In.
Maximum Torque (ft-lbs)550
Maximum RPM3000
Case IncludedNo
MaterialMetal
Net Tool Weight2.20 lbs
Number of Batteries Required1
Battery CompositionLithium-Ion (Li-ion)
CSA CertifiedNo
UL ListedYes
