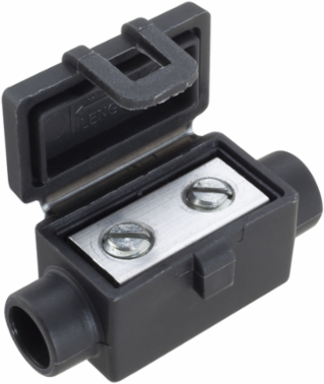

ILSCO MAC-618-S-K Multi-Wire Splice Connector, Black, CU 6-18 AWG, AL 6-12 AWG, Pack of 24
- MPN: MAC-618-S-K
- PPN: ILC-MAC-618-S-K
CAD
$262.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Multi-Wire Splice Connector, Black, CU 6-18 AWG, AL 6-12 AWG, Pack of 24
Documentation & Downloads
Specifications
Voltage
- Voltage Rating
- 300 V
Testing Standards
- UL Control Number
- 453G
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
Material and Finish
- Conductor Material
- Aluminum
MaterialAluminum
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 6 Str - 12 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 6 Str - 18 Str
- Flex Conductor Range
- 6-14 G,H,I,K,M,DLO
Conductor Range CU Solid (Primary, run, main, line)6 Sol - 18 Sol
Conductor Range AL Solid (Primary, run, main, line)6 Sol - 12 Sol
General
- Bag Quantity
- 24
- Dual Rated
- Yes
Carton Quantity DescriptionSTD PACK QTY 1
NEMA CodeS-588-1
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
Color
- Color
- Black
Environment and Temperature
- Temperature Rating
- 90°C
