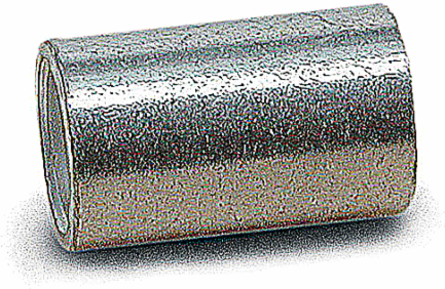

Sta-Kon H1/0-PS-C Splice Connector
- MPN: H1/0-PS-C
- UPC: 786210890869
- PPN: T-B-H1/0-PS-C
CAD
$3.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Non-Insulated Parallel Splice, Length .750 Inches, Outer Diameter .571 Inches, Inner Diameter .446 Inches, Wire Range 1/0 AWG, 83,700kcmi-119,500kcmil, Copper, Tin Plated
Features
- Resistant to corrosion and preserve the electrical integrity of the wires in single or multiple strands.
- Feature an intelligent constructable part number for quick identification of the wire range.
- Application Tools: TBM750M1, TBM8750BSCR
Specifications
European Specifications (ETIM)
| ETIM | EC001059 Crimp splices for copper conductor |
|---|---|
| Material | Copper |
| Insulation | None |
| AWG-range | 1/0-1/0 |
|---|---|
| Surface protection | Tinned |
North American Specifications (UNSPSC)
| UNSPSC | 39121449 Wire or cable compression splice |
|---|---|
| Brand Name | Sta-Kon |
| Special Features | Resistant to corrosion and preserve the electrical integrity of the wires in single or multiple strands. Feature an intelligent constructable part number for quick identification of the wire range. |
| Material | Copper |
| Color | Metallic |
| IGCC | 4669 Wire or cable compression splice |
|---|---|
| Type | Splice Connector |
| Standard | UL E9809 |
| Finish | Tin Plated |
| Voltage Rating | 600V |
Packaging
| Inner Quantity | 100 |
|---|---|
| Outer Quantity | 1000 |
| Weight Uom | 2.5 lbs. per 100 |
| Inner Dimensions (inches) | 4x4x3 |
|---|---|
| Outer Dimensions (inches) | 21.5x8.5x3.43 |
