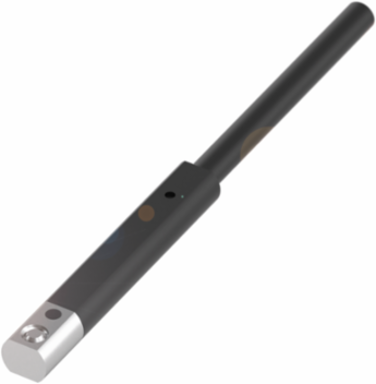

Balluff BMF 243K-NS-C-2A-PU-02 Magnetic field sensors for C-slot BMF 243K-NS-C-2A-PU-02
- MPN: BMF 243K-NS-C-2A-PU-02
- PPN: BAL-BMF00EJ
CAD
$65.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Our magnetic cylinder sensors for C-slots distinguish themselves with their firm grip. Features: can be mounted flush – suitable for space-critical applications; can be installed from above – also fit where the slot ends are closed; contact-free detection of the piston position through cylinder walls; can be used for cylinders and grippers with strong or weak magnets. Extremely short configurations are available.
Documentation & Downloads
Specifications
Key Specifications
| Dimension | 24 x 3 x 3.75 mm |
|---|---|
| Application | Pneumatic cylinder with C-slot, e.g. SMC, Festo*, Schunk, Sommer, Gimatic (*not suitable for Festo Series ADVC and AEVC) |
| Housing material | PA 12 |
| Switching frequency | 3000 Hz |
| Ambient temperature | -25-85 °C |
| Approval/Conformity | cULus, CE, WEEE |
| Cable | PUR, 2.00 m |
|---|---|
| Mounting | can be installed in C-slot from above |
| Switching output | NPN Normally open (NO) |
| Operating voltage Ub | 10-30 VDC |
| IP rating | IP67 |
