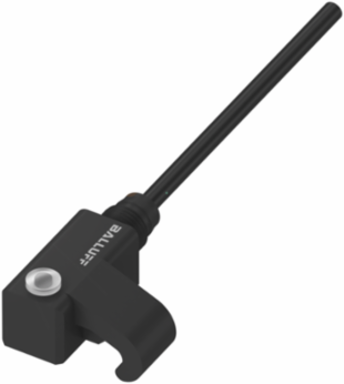

Balluff BMF 21K-PS-C-2-PU-05 Magnetic field sensors for round cylinders BMF 21K-PS-C-2-PU-05
- MPN: BMF 21K-PS-C-2-PU-05
- PPN: BAL-BMF0028
CAD
$147.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Our cylinder sensors for round cylinders are integrated into different applications with the appropriate hose clamp and mounting bracket. The mounting bracket concept is suitable for most types of cylinders up to 80 mm piston diameter. Features: contact-free detection of the piston position through the cylinder wall, precise switching point, wear-free, resistant to dirt, secure grip, fast installation.
Documentation & Downloads
Specifications
Key Specifications
| Dimension | 33 x 23 x 11 mm |
|---|---|
| Application | Pneumatic cylinder with tie rods, Pneumatic cylinder with DUO rail, Round cylinder, Profile cylinder |
| Switching output | PNP Normally open (NO) |
| Operating voltage Ub | 10-30 VDC |
| IP rating | IP67 |
| Cable | PUR, 5.00 m |
|---|---|
| Housing material | PBT |
| Switching frequency | 10000 Hz |
| Ambient temperature | -25-85 °C |
| Approval/Conformity | CE, cULus, WEEE |
