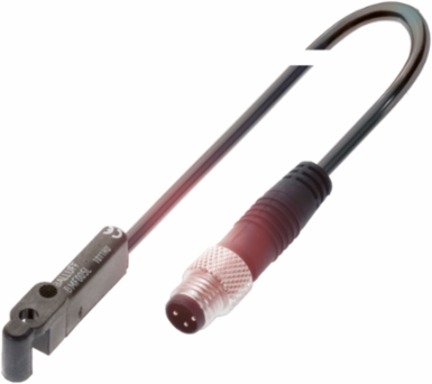

Balluff BMF 305K-NS-C-2-S49-00,2 Magnetic field sensors for trapezoidal groove and trapezoidal guide BMF 305K-NS-C-2-S49-00,2
- MPN: BMF 305K-NS-C-2-S49-00,2
- PPN: BAL-BMF004Z
CAD
$115.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Our magnetic cylinder sensors for trapezoidal slots can be easily mounted on the cylinder with mounting brackets and adapters. The mounting bracket concept is suitable for most types of cylinders with trapezoidal slots or trapezoidal guides. Features: contact-free detection of the piston position through the cylinder wall, can be used for cylinder and grippers with strong or weak magnets, variants for cylinders with 60° and 90° trapezoidal slots.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- 33.5 x 5 x 10.5 mm
- Cable
- PUR, 0.2 m
- Switching output
- NPN Normally open (NO)
- Operating voltage Ub
- 10-30 VDC
- IP rating
- IP67
ConnectionM8x1-Male, 3-pin
Housing materialLCP
Switching frequency10000 Hz
Ambient temperature-25-85 °C
Approval/ConformityCE, cULus, WEEE
