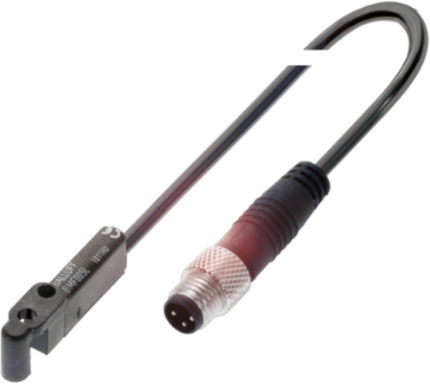

Balluff BMF 305K-NS-C-2-SA2-S49-00,3 Magnetic Field Sensor, 33.5x5x10.5 mm, IP67, -25-85 C
- MPN: BMF 305K-NS-C-2-SA2-S49-00,3
- PPN: BAL-BMF0050
CAD
$128.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Magnetic Field Sensor, 33.5x5x10.5 mm, IP67, -25-85 C
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10-30 VDC
- Rated Operating Current
- 200 mA
- Rated Insulation Voltage
- 75 V DC
- Load Capacitance Max
- 1 B5F
- Ripple Max
- 15 % of Ue
- Assured Switching Field Strength
- 2 kA/m
- Hysteresis Max
- 45 %
- Turn-on Delay Max
- 0.05 ms
- No-load Current Max Undamped
- 10 mA
- Polarity Reversal Protection
- Yes
- Protection Against Device Mix-ups
- Yes
- Cable
- PUR, 0.3 m, 2.90 mm diameter
- Housing Material
- LCP
- IP Rating
- IP67
- Approval/Conformity
- CE, cULus, WEEE
- MTTF (40 B0C)
- 225 a
Rated Operating Voltage24 V DC
Rated Short Circuit Current100 A
Switching Frequency10000 Hz
Residual Current Max80 B5A
Utilization CategoryDC-13
Rated Switch Field Strength1.2 kA/m
Temperature Drift Max0.3 %
Turn-off Delay Max0.05 ms
Switching OutputNPN Normally open (NO)
Short-circuit ProtectionYes
Dimensions33.5 x 5 x 10.5 mm
ConnectionM8x1 Male, 3-pin
Sensing Surface MaterialPU
Ambient Temperature Range-25 to 85 B0C
Basic StandardIEC 60947-5-2
